Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
Avalanche 1500 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>
4L80-E
>>

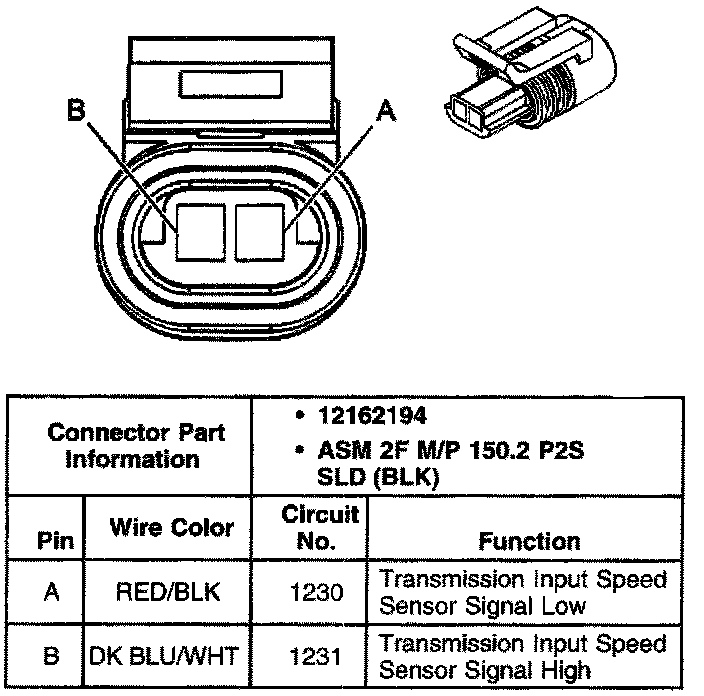

A/T Input Shaft Speed Sensor Connector
A/T Input Shaft Speed Sensor Connector
