Pitman Arm: Service and Repair

Pitman Arm Replacement

- Tools Required
- J 29107-A Pitman Arm Puller

Removal Procedure

Important: Use the proper tool in order to separate all of the ball joints.





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel.
3. Remove the power steering gear.

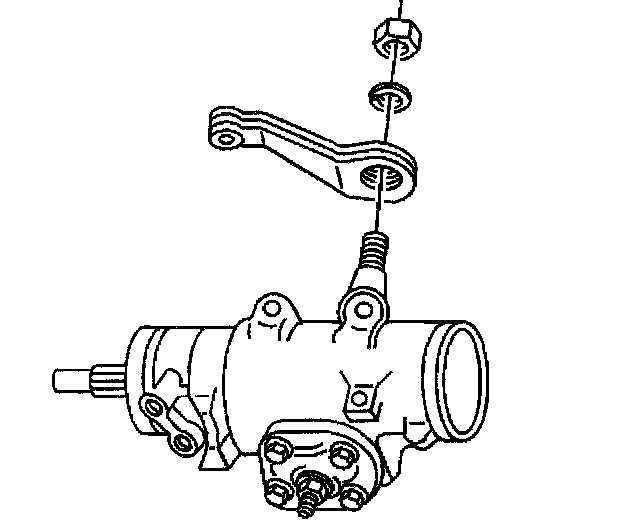

4. Remove the pitman arm retaining nut and washer. Mark the pitman arm and the pitman shaft in order to permit proper alignment during assembly.





Notice: Do not hammer on the pitman arm, pitman arm shaft or puller. Damage to the pitman arm or steering gear may result.

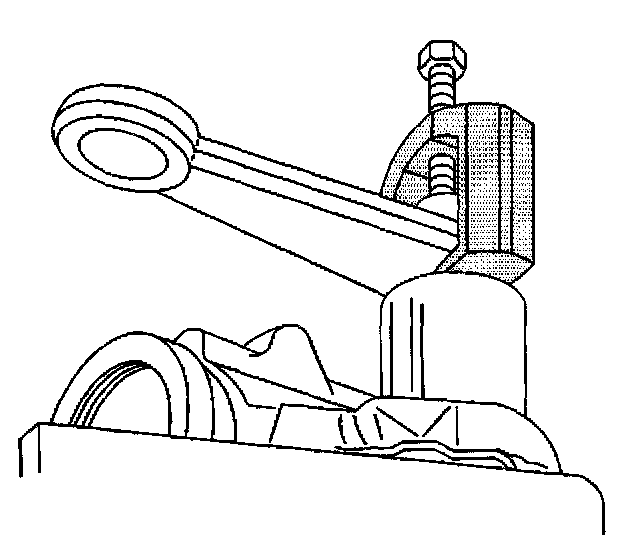

5. Use the J29107-A in order to remove the pitman arm.
6. Inspect the ball stud threads for damage.
7. Inspect the ball stud seals for excessive wear.
8. Clean the threads on the ball stud and the ball stud nut.

Installation Procedure





1. Align the marks made on the pitman arm during removal in order to install the pitman arm on the pitman shaft.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the washer and the pitman arm retaining nut.
- Tighten the pitman arm retaining nut to 250 Nm (185 ft. lbs.)
3. Install the power steering gear.
4. Lower the vehicle.
