Right Rear

REMOVAL PROCEDURE




1. Remove the trim cover from the rear seat belt retractor, by grasping the sides and pull downward.

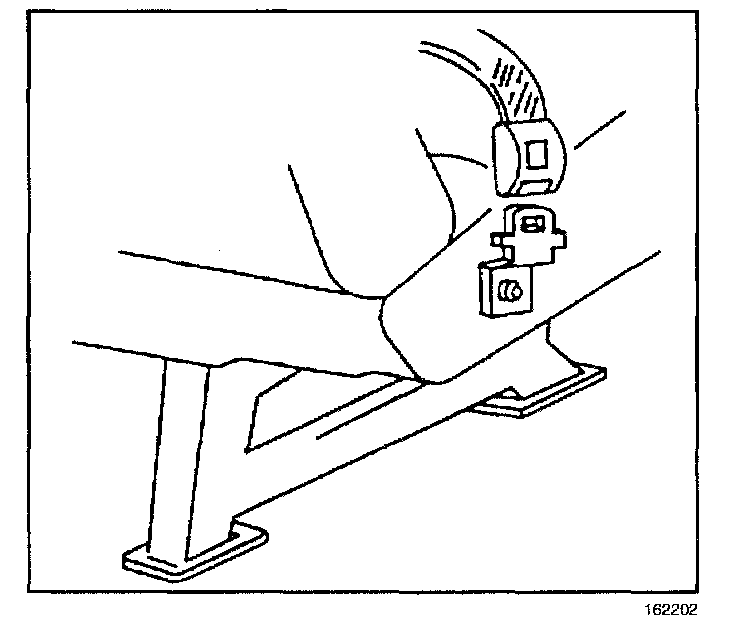

2. Remove the seat belt retractor buckle from the latch.
2.1. Locate the red dot in the center of the buckle.
2.2. Insert a small pointed tool in the center of the buckle.
2.3. Push inward for it to release from the latch.

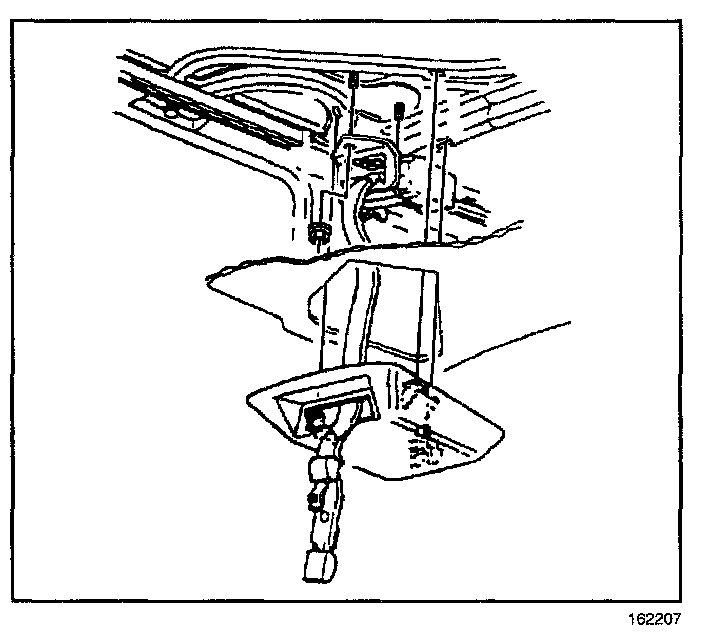

3. Remove the rear seat belt retractor nuts from the roof reinforcement.
4. Remove the rear seat belt retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the rear seat belt retractor to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

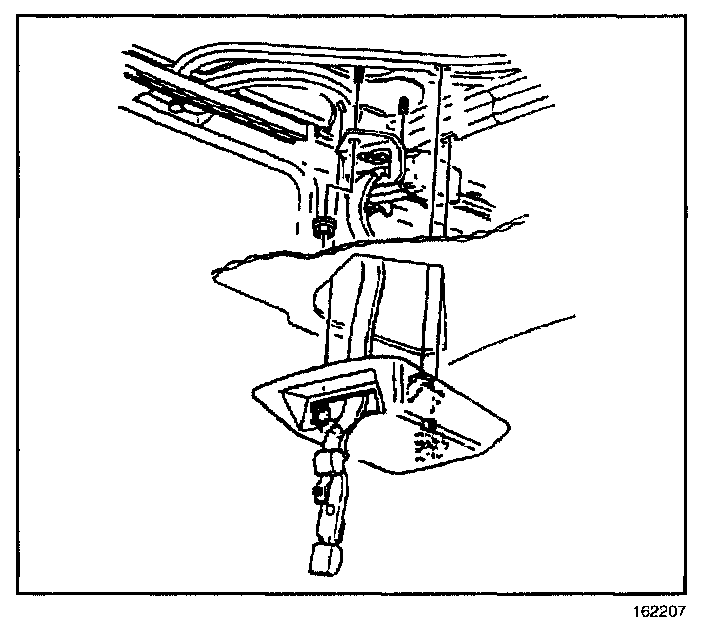

2. Install the rear seat belt retractor nuts to the roof reinforcement panel.

Tighten
Tighten the seat belt retractor nuts to 35 N.m (26 lb ft).

3. Snap the retractor cover into place.

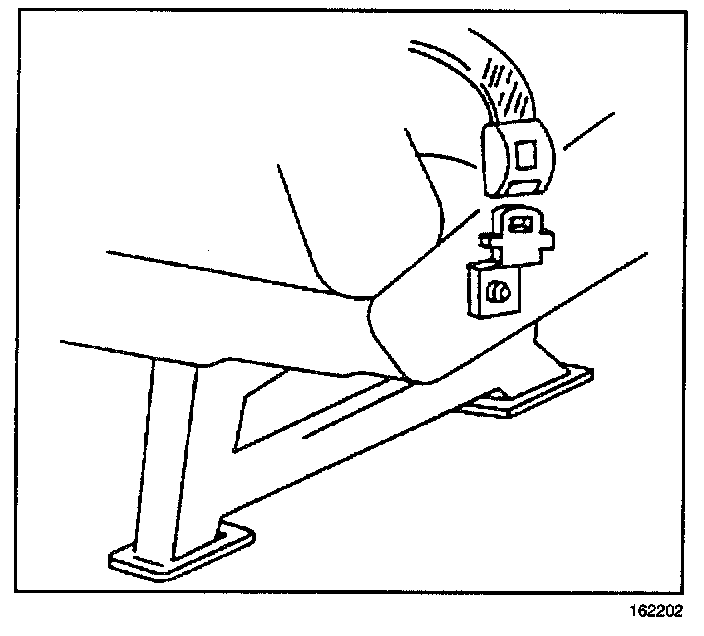

4. Install the seat belt buckle to the latch.
