Left Rear

REMOVAL PROCEDURE



1. Remove the left rear bucket seat.

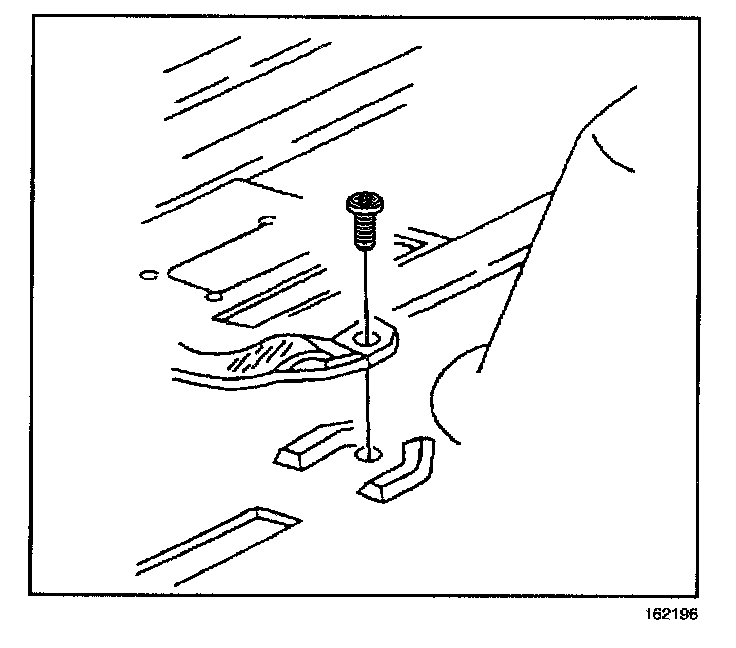

2. Remove the seat belt bolt from the rear floor.
3. Remove the body side trim panel.

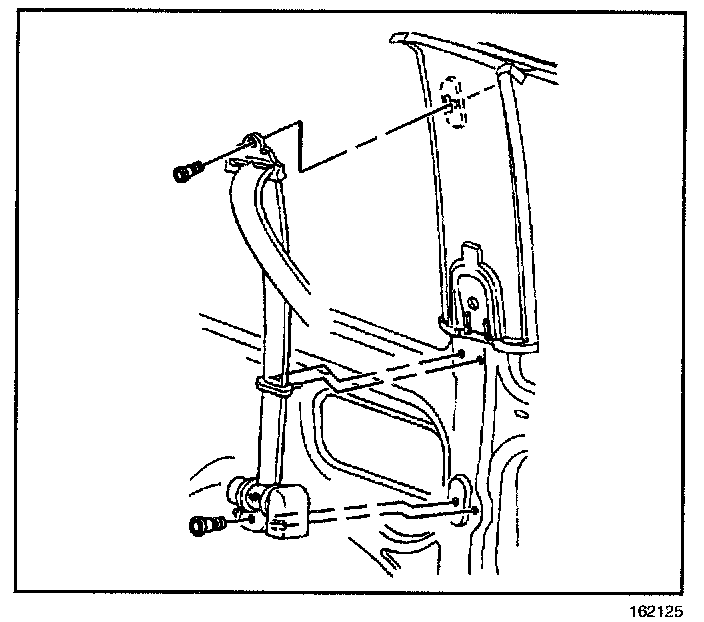

4. Remove the cover from the shoulder belt to expose the bolt.
5. Remove the shoulder belt retaining bolt from the body side pillar.
6. Remove the retractor bolt from the body side panel.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the retractor bolt to the body side panel.

Tighten
Tighten the retractor bolt to 53 N.m (39 lb ft).

2. Install the shoulder belt bolt to the body side pillar.

Tighten
Tighten the shoulder belt bolt to the body side pillar to 30 N.m (22 lb ft).

3. Install the cover to the shoulder belt.
4. Install the body side trim panel.

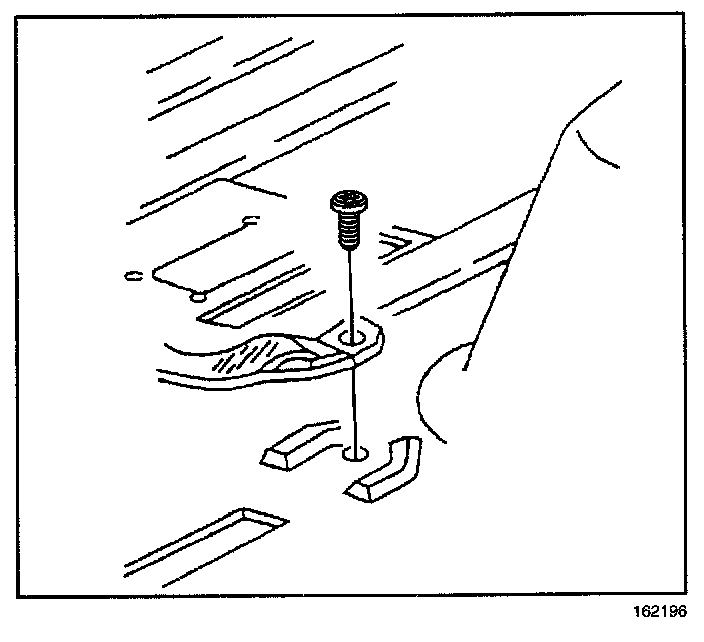

5. Install the seat belt bolt to the rear floor.

Tighten
Tighten the seat belt bolt to the rear floor to 53 N.m (39 lb ft).

6. Install the left rear bucket seat.
