Air Outlet Duct Replacement - Left Floor

REMOVAL PROCEDURE




1. Remove the instrument panel carrier.
2. Remove the windshield defroster duct.

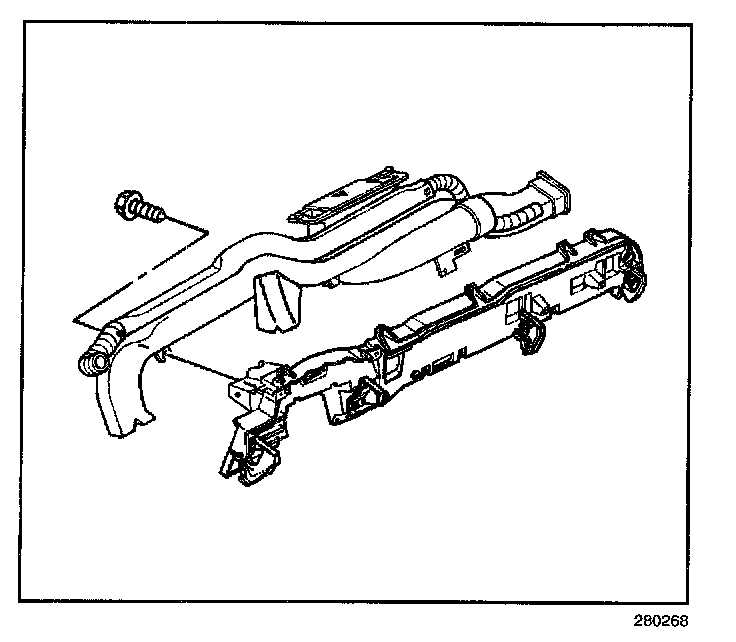

3. Remove the screws that retain the air outlet duct to the instrument panel carrier.
4. Remove the side window defroster ducts.
5. Remove the air outlet duct from instrument panel.

INSTALLATION PROCEDURE




1. Install the air outlet duct to the instrument panel.
2. Install the side window defroster ducts.

NOTE: Refer to Fastener Notice

3. Install the screws that retain the floor air outlet duct to the instrument panel carrier.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the windshield defroster duct.
5. Install the instrument panel carrier.
