Home
>>
Chevy Truck
>>
2002
>>
Astro Van L AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Transfer Case Locator View
Transfer Case Locator View

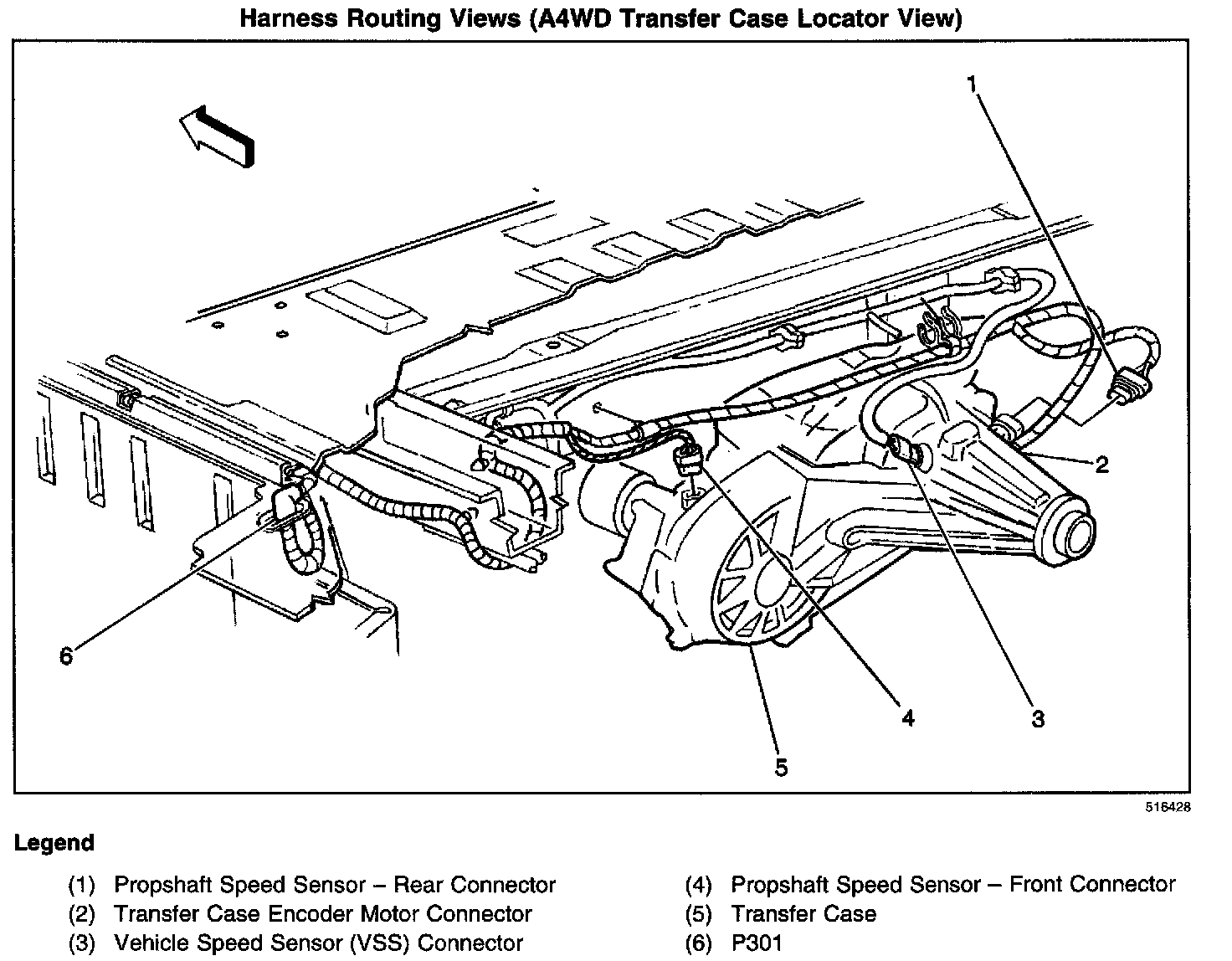

Harness Routing Views (A4WD Transfer Case Locator View):
