Transfer Case

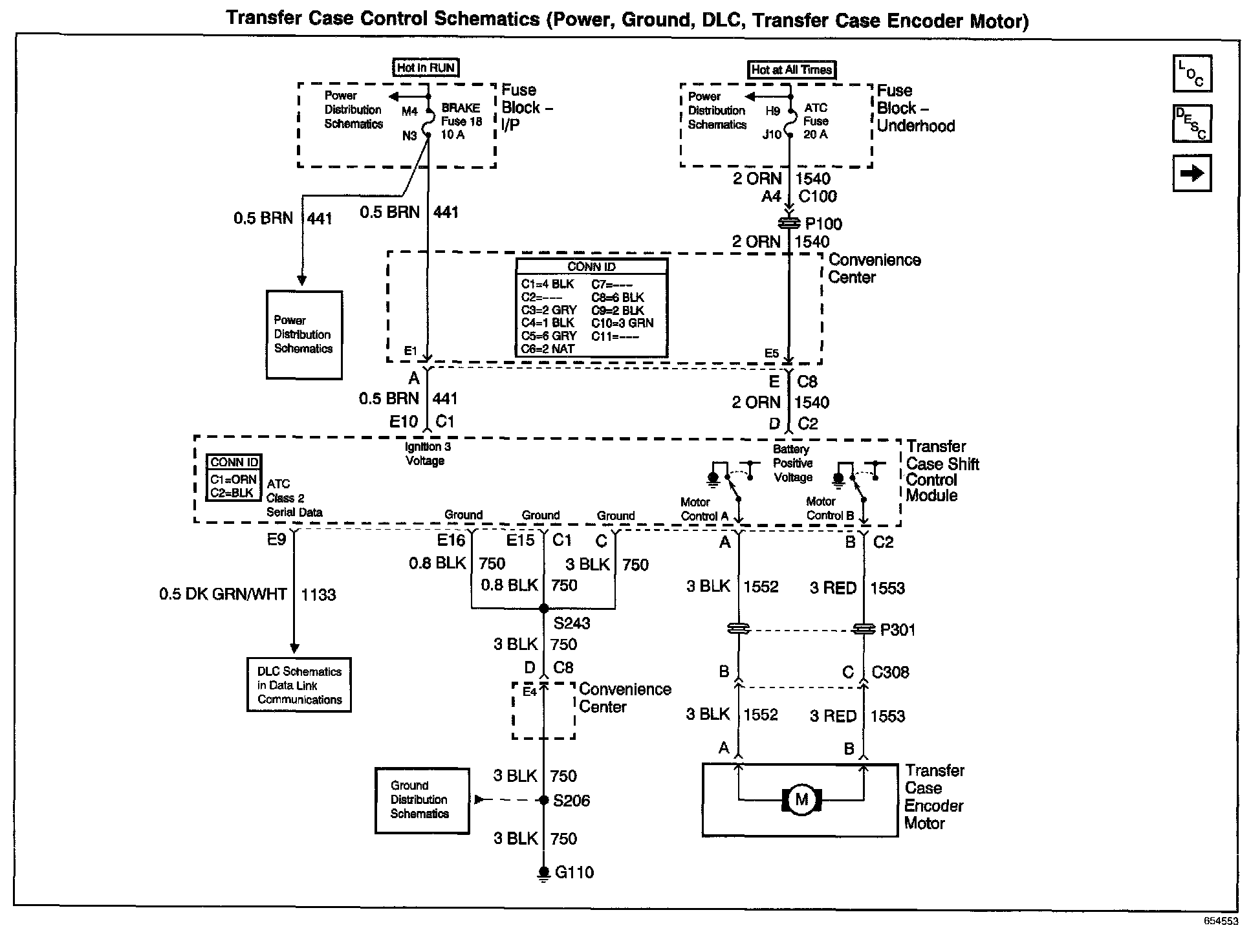

Transfer Case Control Schematics: Power, Ground, DLC, Transfer Case Encoder Motor:

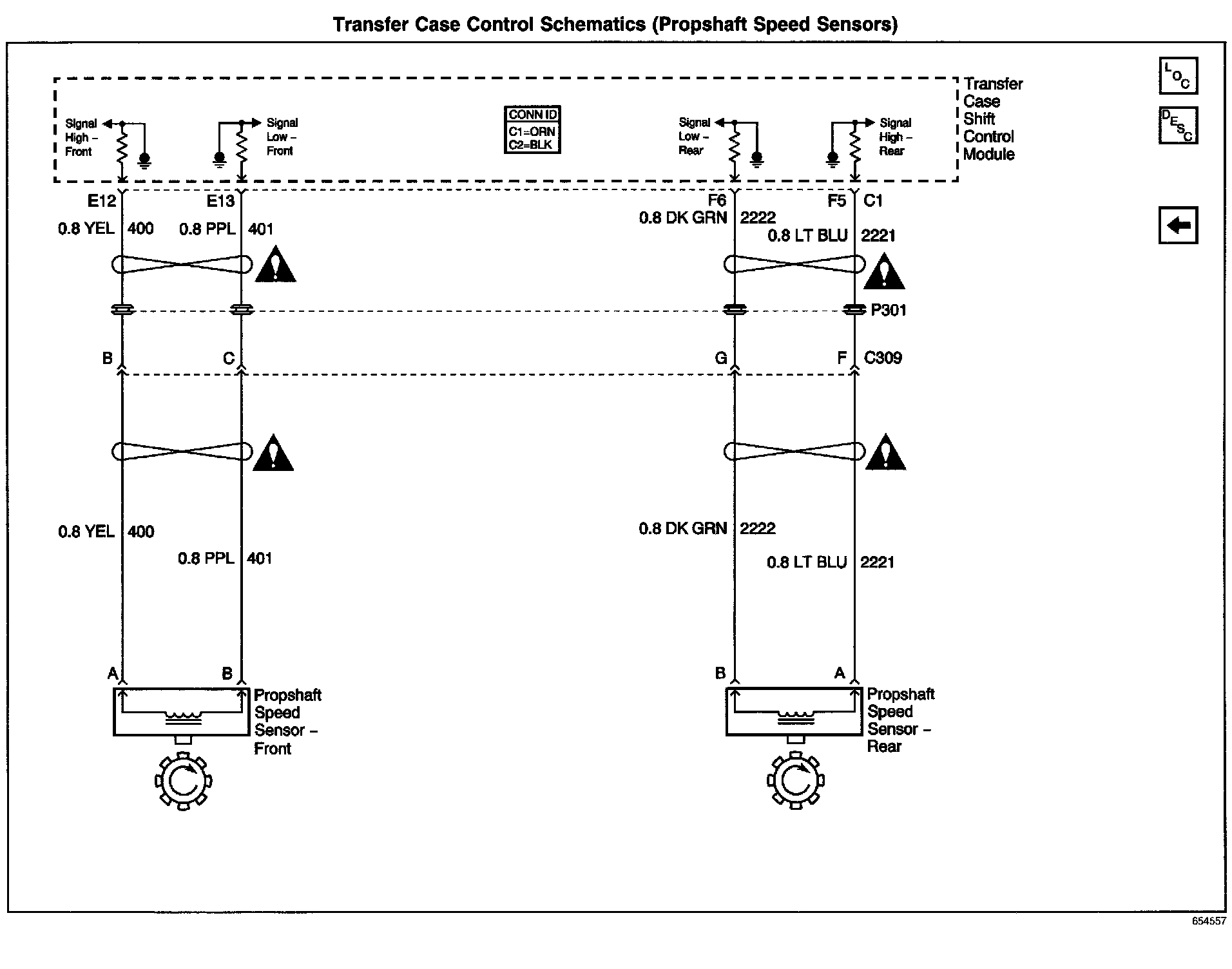

Transfer Case Control Schematics: Propshaft Speed Sensors:
