Chevy Truck
>>
2002
>>
Astro Van L AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100-C110
>>

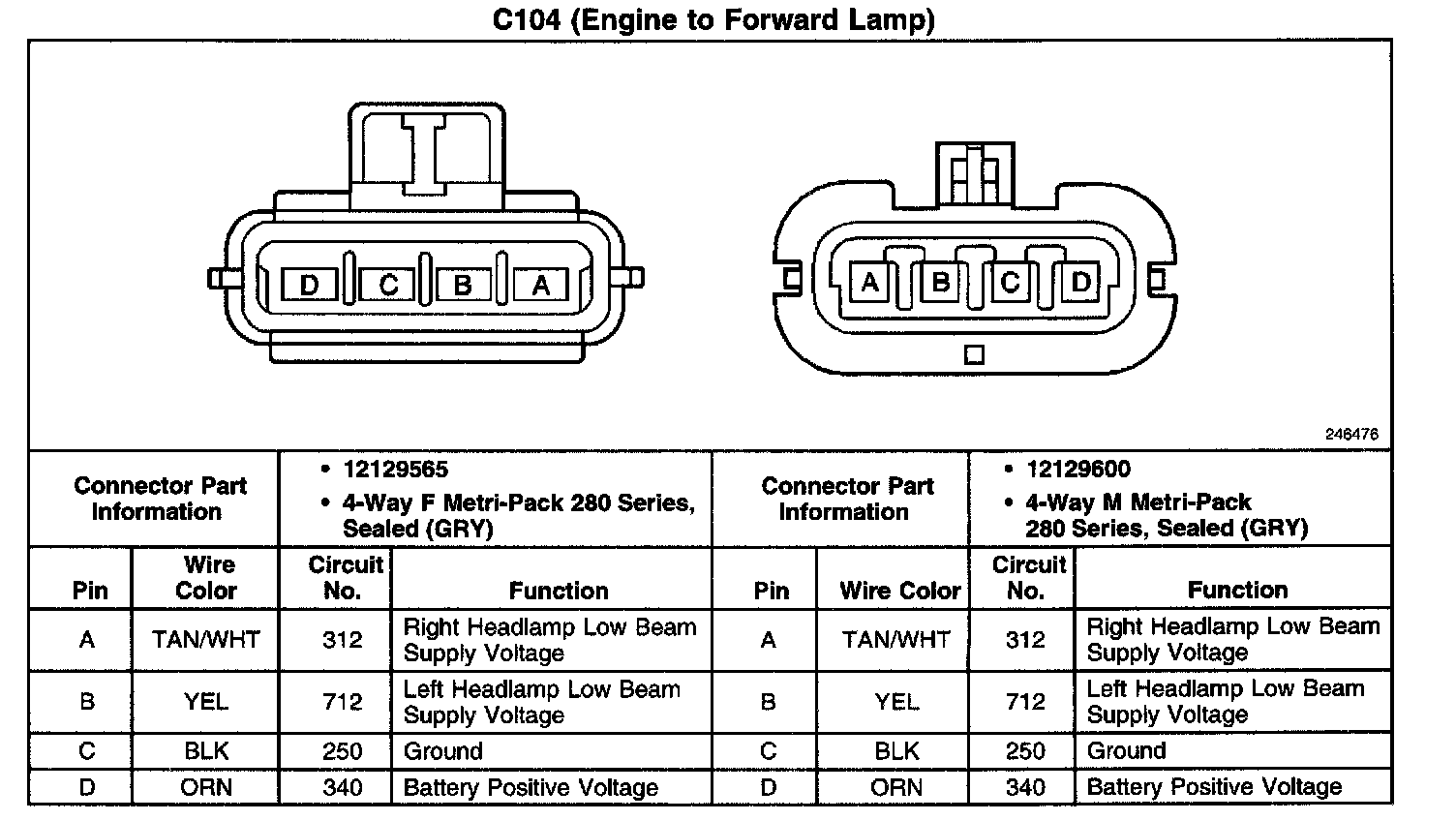

C104 (Engine To Forward Lamp)
C104 (Engine To Forward Lamp)
C104 (Engine To Forward Lamp):
