Hot Water Bypass Valve Replacement (Front)
TOOLS REQUIREDJ 38185 Hose Clamp Pliers
REMOVAL PROCEDURE
1. Remove the air cleaner.
2. Remove the upper fan shroud.
3. Drain the engine coolant. Refer to Draining and Filling Cooling System

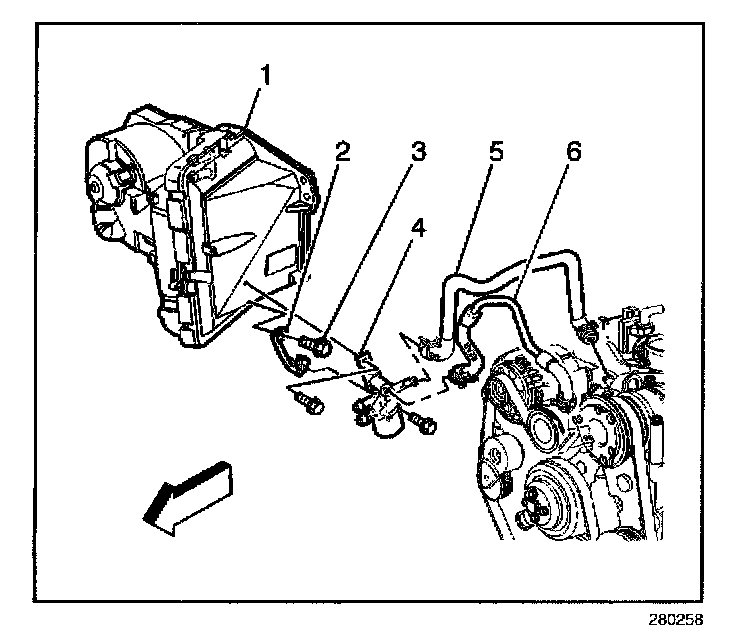

4. Remove the heater inlet pipe (5) and the outlet pipe (6) from the bypass valves (4).
5. Remove the bolt (3) that retains the valve (4) to the heater assembly.
6. Remove the bypass valve (4) from the heater assembly.
INSTALLATION PROCEDURE
1. Install the bypass valve (4) to the heater assembly.
NOTE: Refer to Fastener Notice
2. Install the bolt (3) that retains the valve (4) to the heater assembly.
Tighten
Tighten the bolt to 4 N.m (35 lb in).
3. Install the heater inlet pipe (5) and the outlet pipe (6) to the bypass valves.
4. Refill the cooling system. Refer to Draining and Filling Cooling System
5. Install the upper fan shroud.
6. Install the air cleaner.
