Hood Weatherstrip: Service and Repair

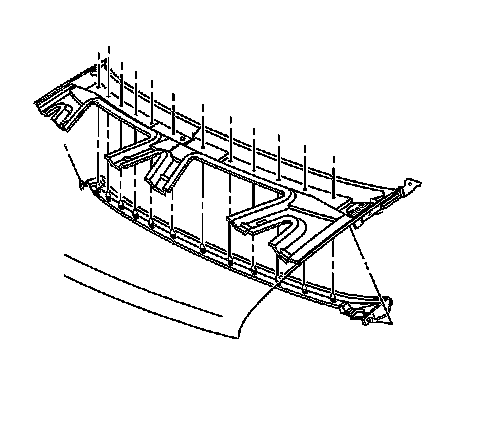

Seal Replacement - Hood Rear

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover


Removal Procedure





1. Remove the rear hood seal retainers by using J 38778 .
2. Remove the rear hood seal from the hood.



Installation Procedure

1. Install the rear hood seal to the hood.




2. Push the retainers into the hood in order to retain the rear hood seal.
