Chevy Truck
>>
2001
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Description and Operation
>>

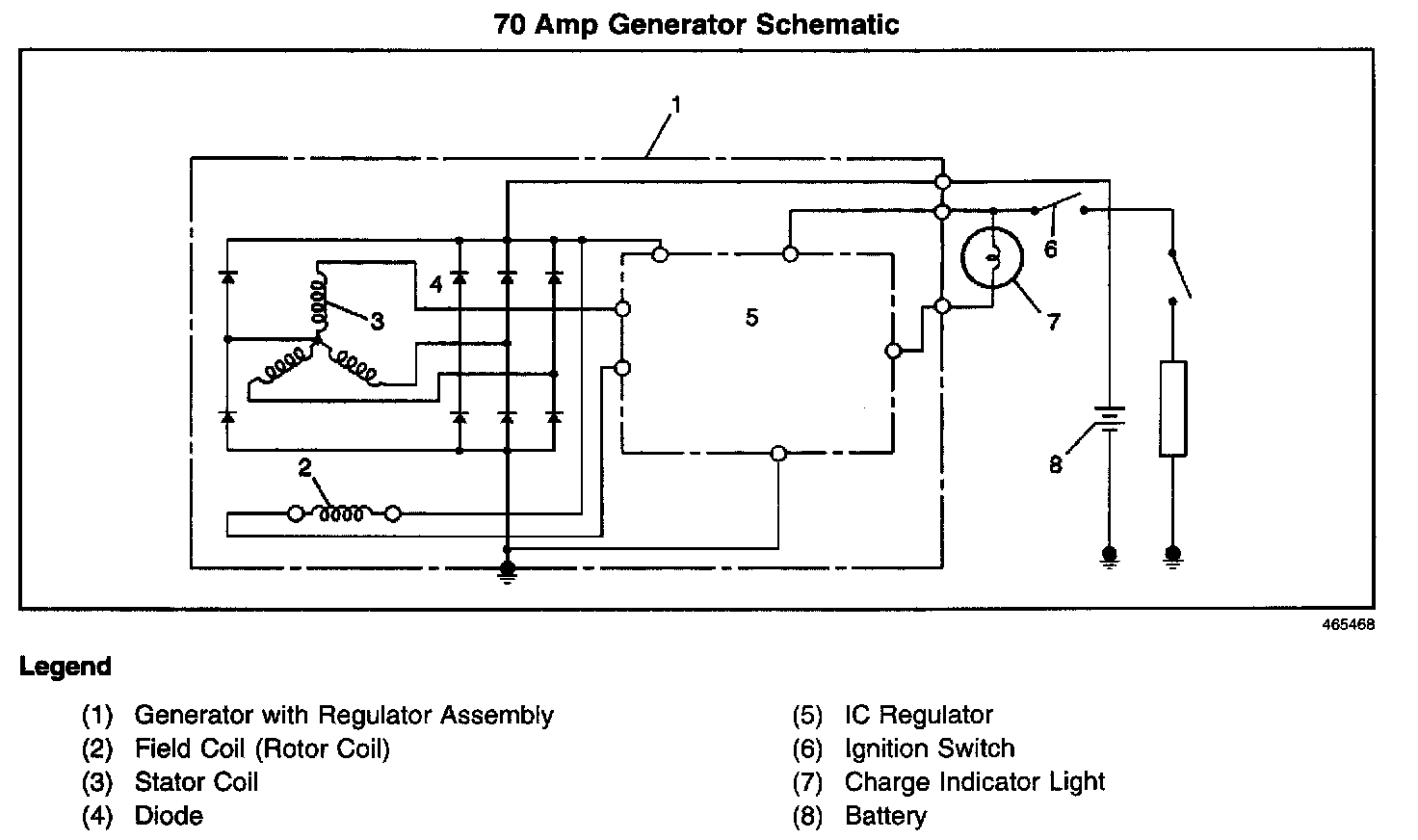

70 Amp Generator Schematic
70 Amp Generator Schematic
70 Amp Generator Schematic:
