Home >> Chevy Truck >> 2001 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Diagrams

Condenser Fan Motor Relay: Diagrams

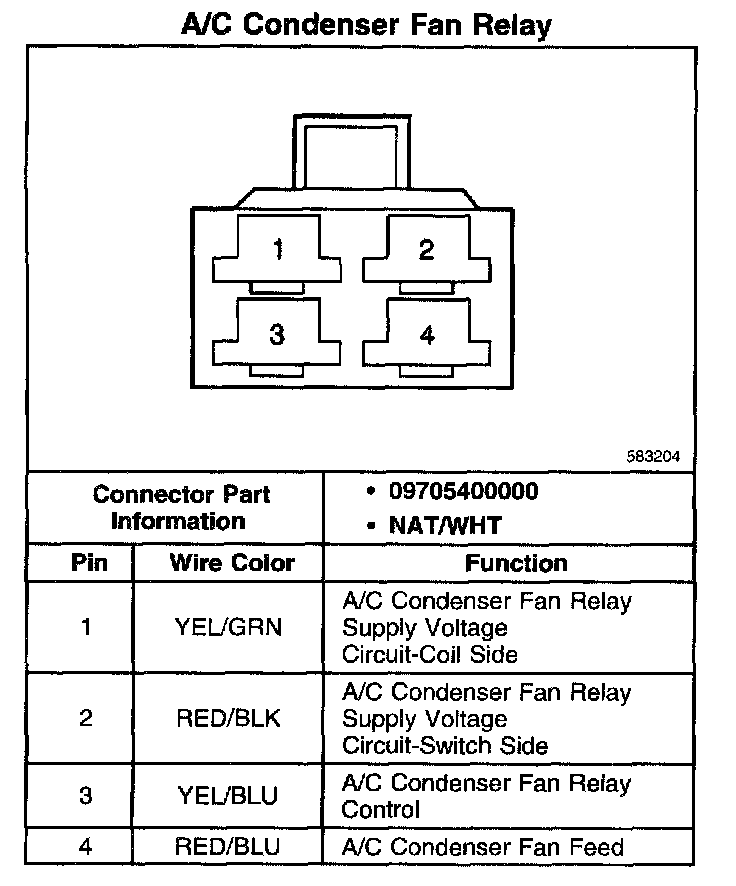

A/C Condenser Fan Relay:
