Home
>>
Chevy Truck
>>
2001
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Keyless Entry
>>
Door Lock Motors
Door Lock Motors

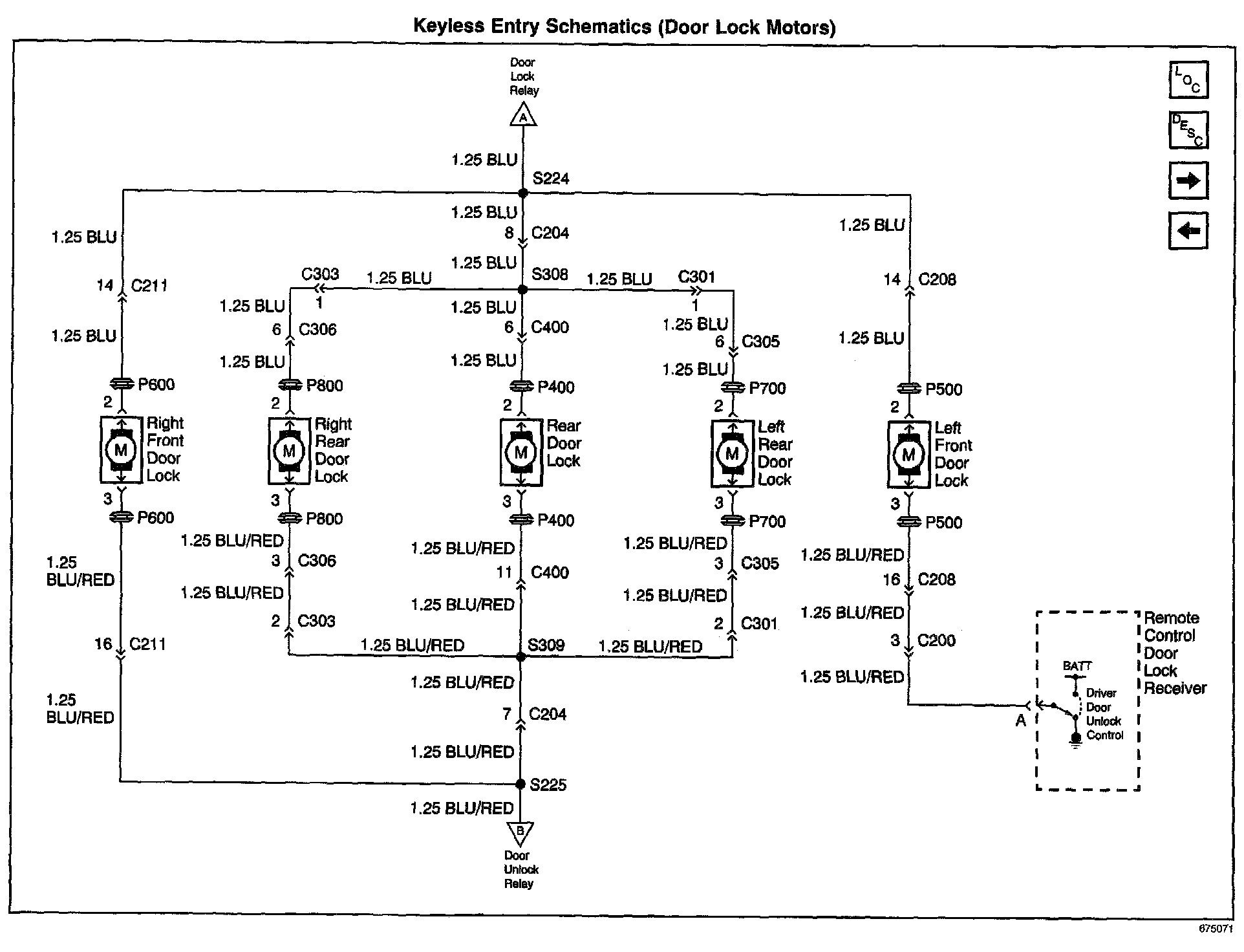

Keyless Entry Schematics: Door Lock Motors:
