Home
>>
Chevy Truck
>>
2001
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>

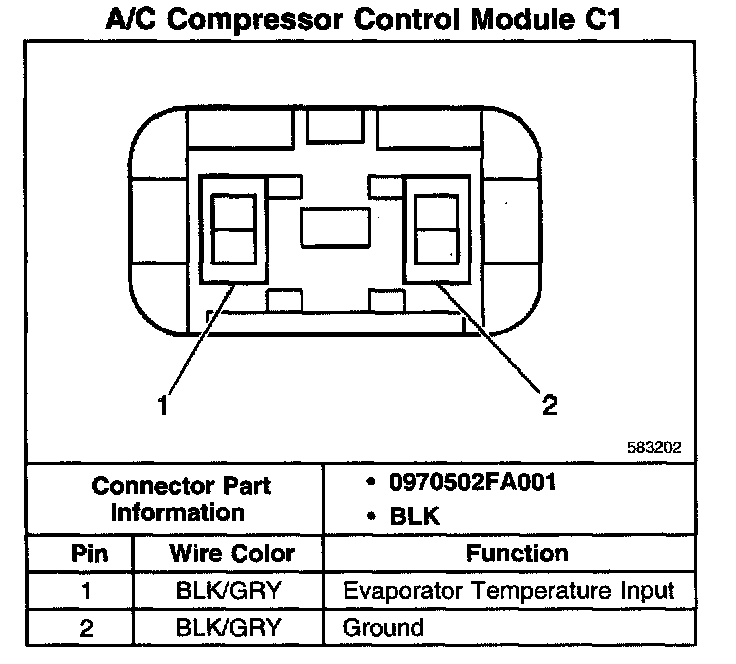

A/C Compressor Control Module C1
A/C Compressor Control Module C1
A/C Compressor Control Module C1:
