Shift Cable: Adjustments

Shift Cable Adjustment

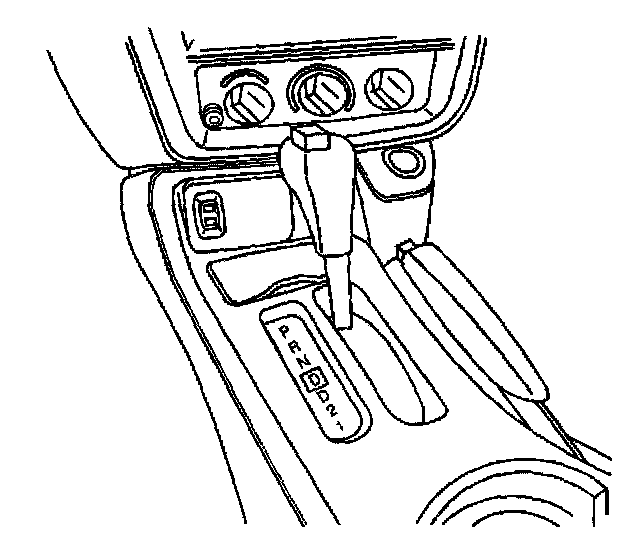

1. Position the transmission shift control lever into park.
2. Apply the park brake.
3. Raise and support the vehicle. Refer to Vehicle Lifting.

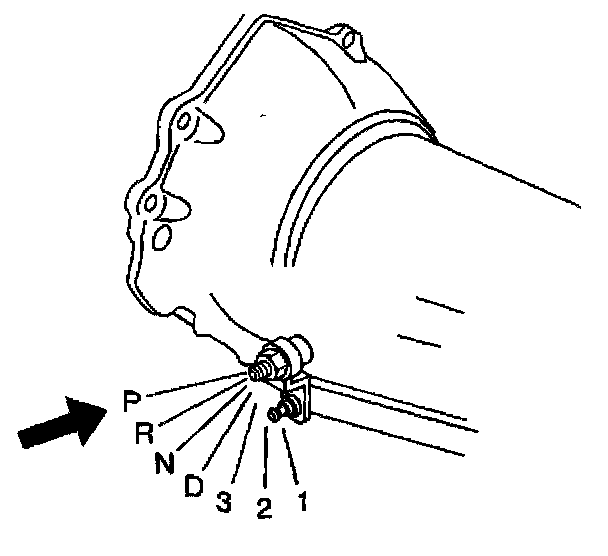

4. Position the transmission range selector lever to park. Rotate the range select lever clockwise until it reaches the full mechanical stop position.

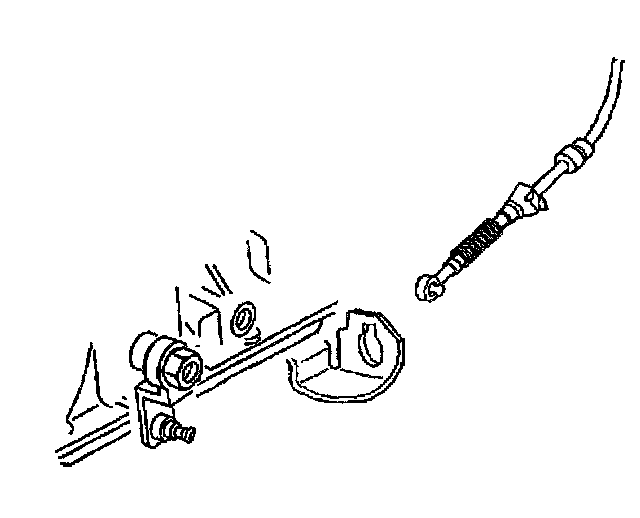

5. Install the transmission shift cable into the bracket with the cable adjustment button up.





6. Install the shift cable to the range selector lever pin.
7. Press cable adjustment button down.
8. Insert the retainer to the shift cable.
9. Lower the vehicle.
