Fluid Line/Hose: Service and Repair
Oil Cooler Line ReplacementRemoval Procedure
Important: Perform the following procedure when removing the retaining rings and cooler lines from the quick connect fittings located on the radiator and/or the transmission.
1. Pull the plastic cap back from the quick connect fitting and down along the cooler line about 5 cm (2 inch).

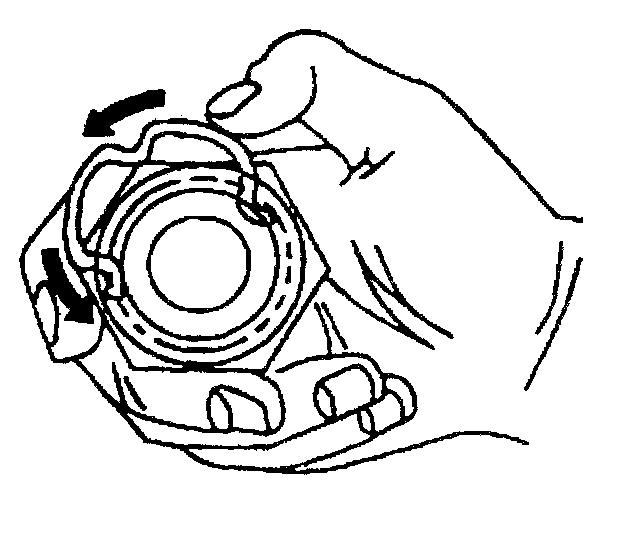

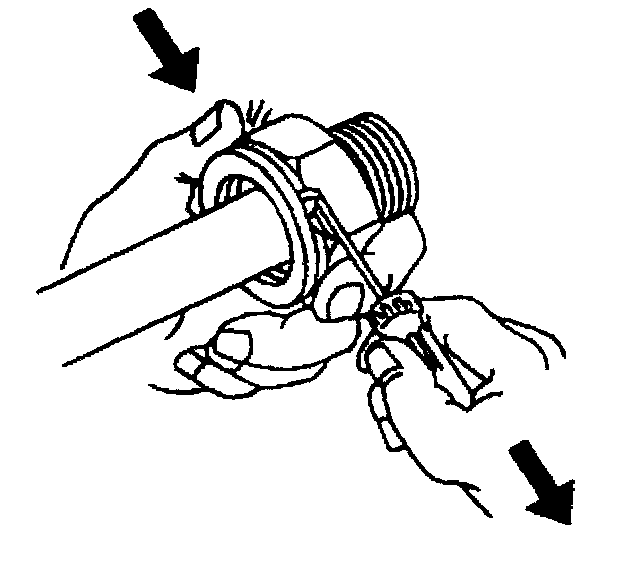

2. Using a bent-tip screwdriver, pull on one of the open ends of the retaining ring in order to rotate the retaining ring around the quick connect fitting until the retaining ring is out of position and can be completely removed.

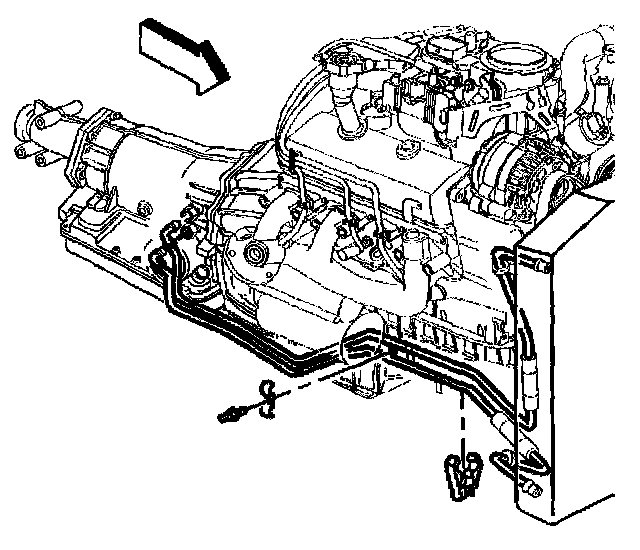

3. Remove the retaining ring from the quick connect fitting.
4. Discard the retaining ring.

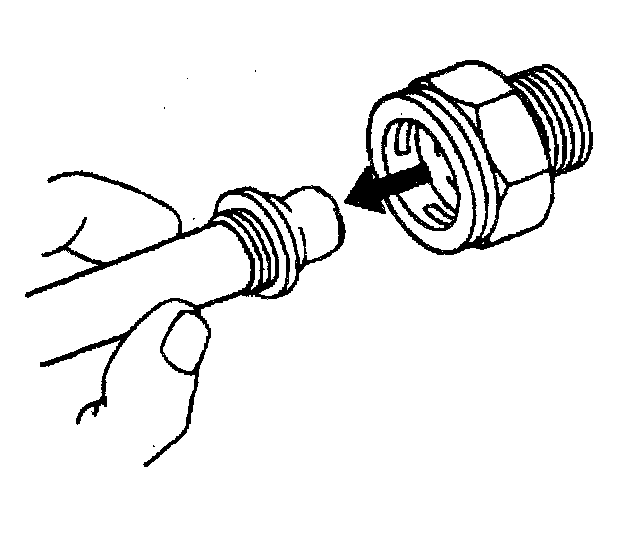

5. Pull the cooler line straight out from the quick connect fitting.

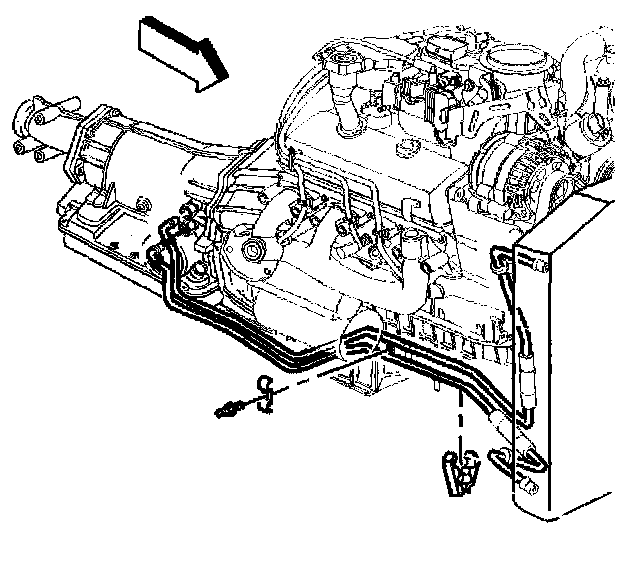

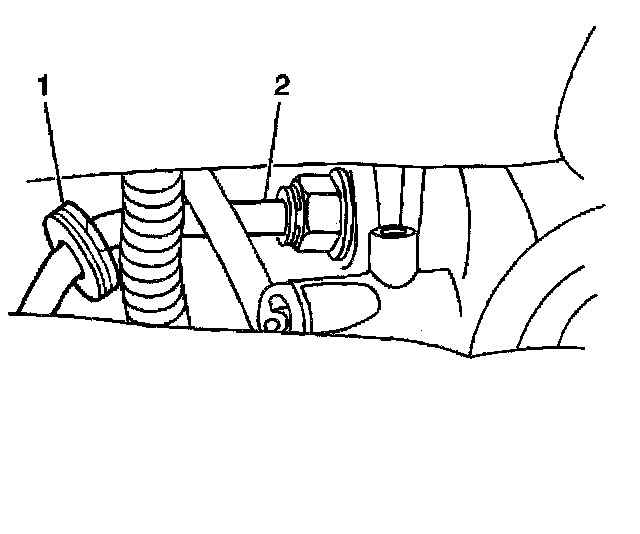

6. Remove the oil cooler lines from the radiator. On vehicles equipped with a 4.3L engine and 4WD, it may be necessary to gain access to the lower cooler line (2) through the right side wheel well opening.
7. Raise and support the vehicle. Refer to Vehicle Lifting.

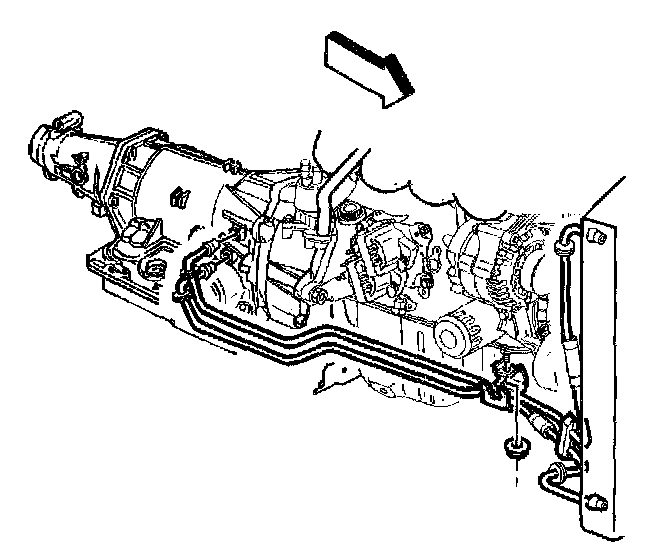

8. For vehicles equipped with a 2.2L engine, remove the nut securing the cooling line to the engine.
9. For vehicles equipped with a 4.3L engine, remove the clip and stud securing the cooler line to the engine.
10. Support the transmission with a transmission jack.

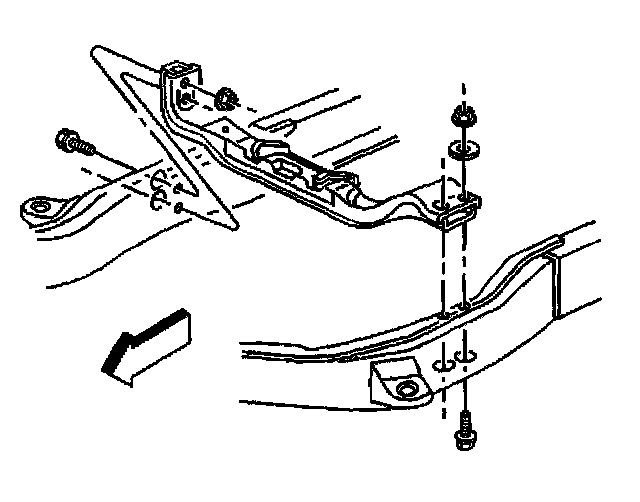

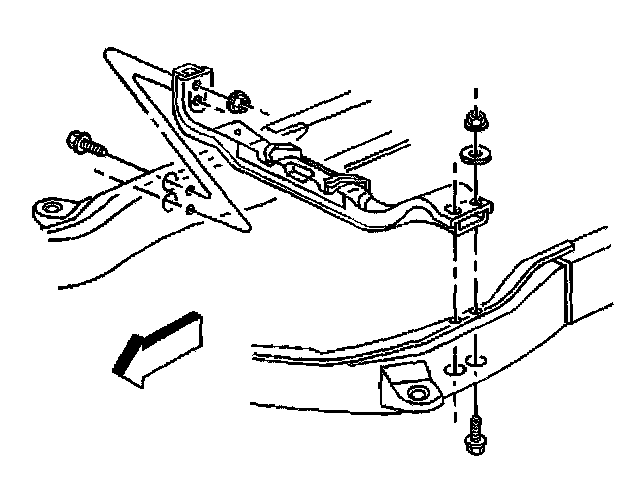

11. Remove the exhaust crossover pipe and the transmission support assembly.
12. Carefully lower the transmission to gain access to the cooler line fittings.
13. Remove the cooler lines from the fittings on the transmission. If the vehicle is equipped with 4WD, it may be necessary to disconnect and temporarily relocate the transfer case vent hose to provide access to the fittings.
14. Remove the cooler lines from the vehicle.
Installation Procedure
1. Install the transmission oil cooler lines to the vehicle.
Important:
^ Do not reuse any of the existing oil lines or oil line fittings if there is excessive corrosion.
^ Do not reuse any of the existing retaining rings that were removed from the existing quick connect fittings. All retaining rings being installed must be new.
^ Ensure the following procedures are performed when installing the new retaining rings onto the fittings.

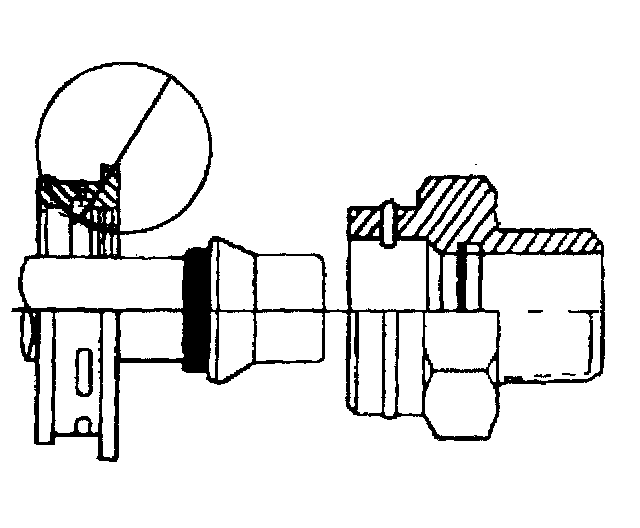

2. Install a new retaining ring (E-clip) into the quick connect fitting using the following procedure:

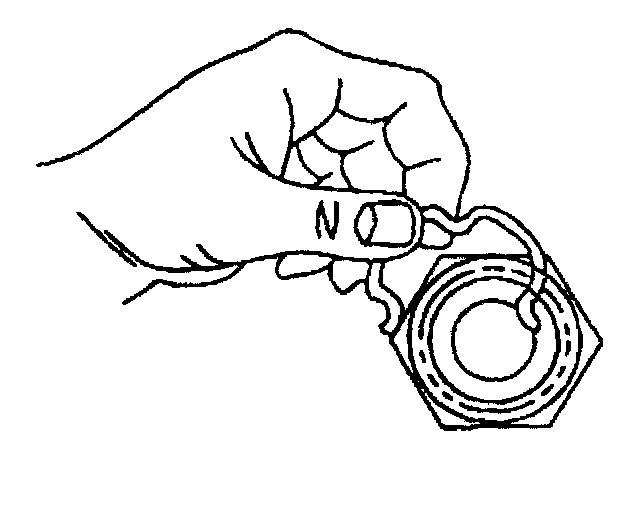

3. Hook one of the open ends of the retaining ring in one of the slots in the quick connect fitting.
4. Rotate the retaining ring around the fitting until the retaining ring is positioned with all three ears through the three slots on the fitting.

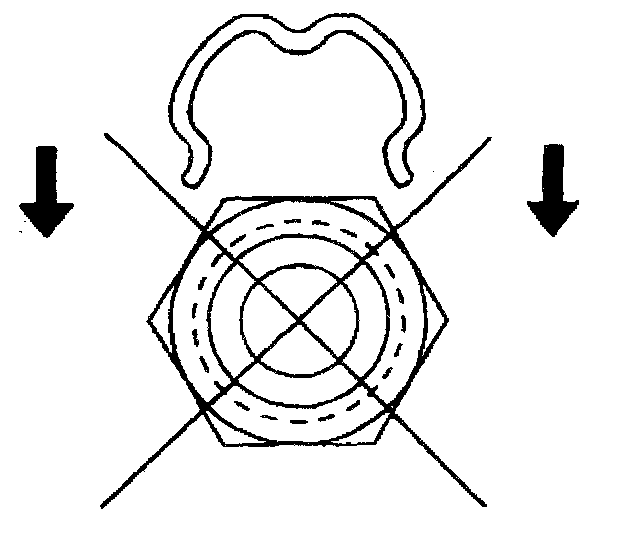

5. Do not install the new retaining ring onto the fitting by pushing the retaining ring.

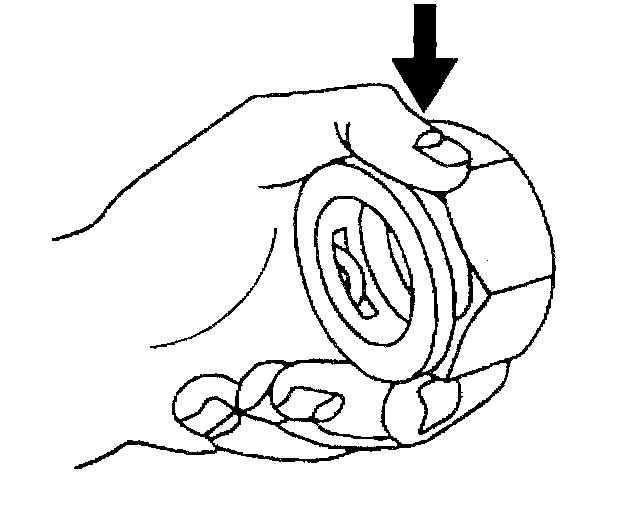

6. Ensure that the three retaining ring ears are seen from inside the fitting and that the retaining ring moves freely in the fitting slots.
7. Install the new retaining ring (E-clip) into the remaining quick connect fittings.
Notice: Ensure that the cooler line being installed has a plastic cap on each end that connects to a quick connect fitting. If no plastic cap exists, or the plastic cap is damaged, obtain a new plastic cap and position on to the cooler line prior to the cooler line installation.
8. Install the cooler lines to the vehicle.
9. Install the cooler line into the quick connect fitting.

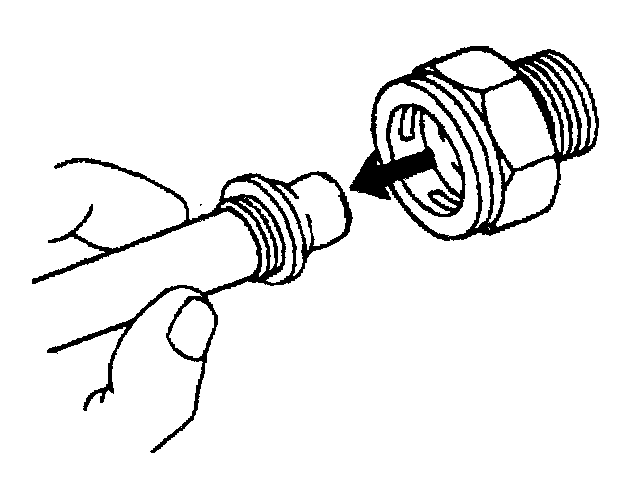

10. Insert the cooler line end into the quick connect fitting until a click is either heard or felt.
11. Do not use the plastic cap on the cooler line in order to install the cooler line into the fitting.
12. Pull back sharply on the cooler line in order to ensure that the cooler line is fastened into the quick connect fitting.
13. Position (snap) the plastic cap onto the fitting. Do not manually depress the retaining ring when installing the plastic cap onto the quick correct fitting.
14. Ensure that the plastic cap is fully seated against the fitting.

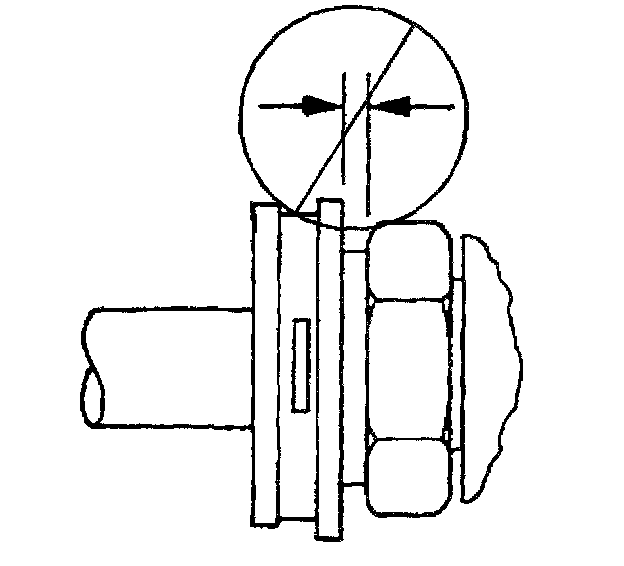

15. Ensure that no gap is present between the cap and the fitting.

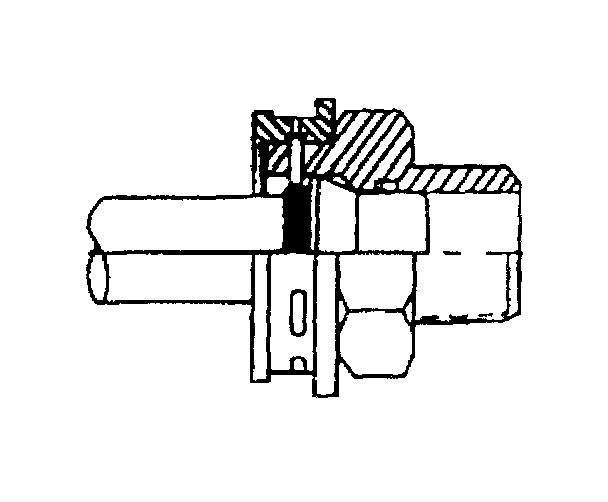

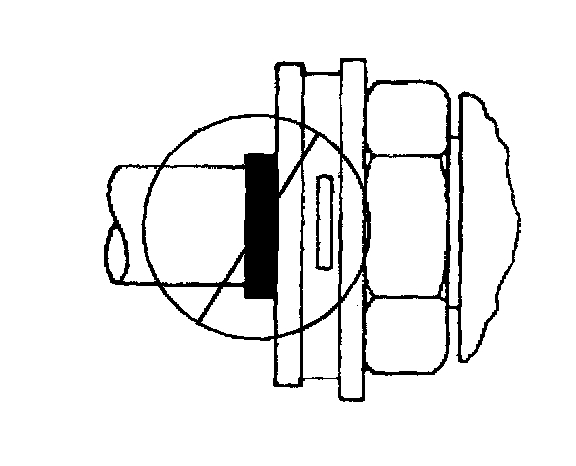

16. Ensure that the yellow identification band on the tube is hidden within the quick connect fitting.
17. A hidden yellow identification band indicates proper joint seating.
18. Install all remaining cooling line ends to the remaining fittings.
19. Install the transfer case vent hose, if equipped.
20. Raise the transmission into position.
21. Install the exhaust crossover pipe and the transmission support assembly.
22. Remove the transmission jack.
Notice: Refer to Fastener Notice in Service Precautions.

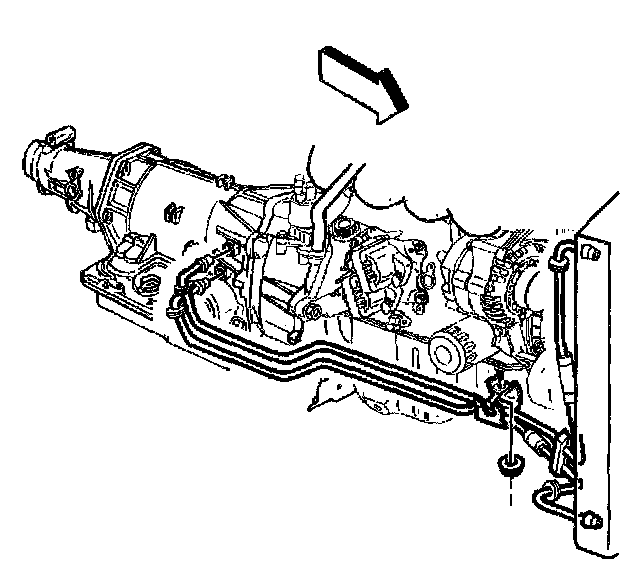

23. For vehicles equipped with a 4.3L engine, install the stud and clip securing the cooler line to the engine.
Tighten the stud to 11 Nm (97 inch lbs.).
24. For vehicles equipped with a 2.2L engine, Install the nut securing the oil cooler lines to the engine.
Tighten the nut to 11 Nm (97 inch lbs.).
25. Lower the vehicle.
26. Fill the transmission to the proper level with approved fluid and check for leaks.
