Center Rear

REMOVAL PROCEDURE

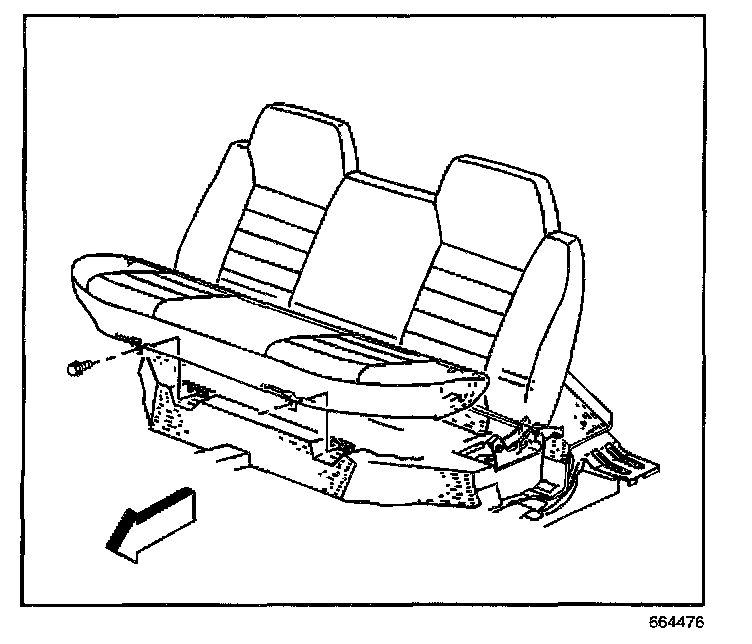

1. Remove the 2 bolts securing the rear seat bottom cushion to the floor.
2. Carefully pull on the rear seat cushion ears to release the retainers from the rear seat back mounting bracket.
3. Remove the rear seat bottom cushion.

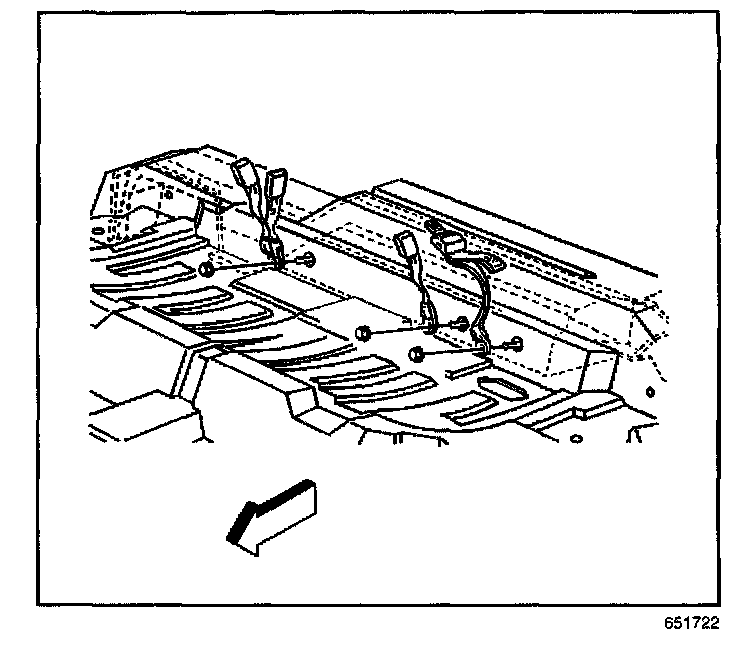

4. Remove the center rear seat belt assembly retaining nuts from the vehicle.
5. Remove the center rear seat belt assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the center rear seat belt assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the center rear seat belt assembly retaining nuts to the vehicle.

Tighten
Tighten the center rear seat belt assembly retaining nuts to 80 N.m (59 lb ft).




3. Install the rear seat bottom cushion into vehicle. Insure the rear seat bottom frame engages in the tabs on the rear seat back mounting bracket.
4. Install the 2 bolts securing the rear seat bottom cushion to the floor.

Tighten
Tighten the rear seat bottom cushion bolts to 25 N.m (18 lb ft).

5. Install rear seat bottom cushion ear retainers into the rear seat back mounting bracket.
