Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Related Connector End Views
>>

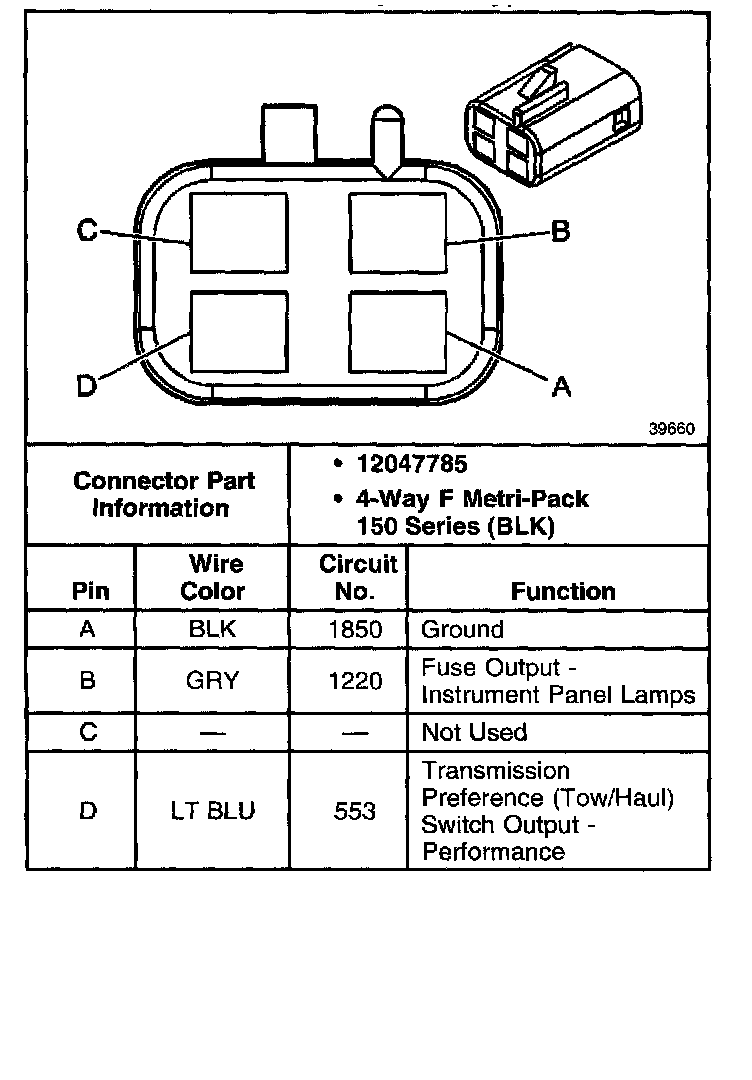

A/T Preference (Tow/Haul) Switch Connector
A/T Preference (Tow/Haul) Switch Connector
