Quick Connect Fitting(S) Service (Plastic Collar)

REMOVAL PROCEDURE




1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.

CAUTION: Refer to Safety Glasses and Compressed Air Caution in Service Precautions.

2. Using compressed air, blow any din out of the quick-connect fitting.
3. Squeeze the plastic retainer release tabs.

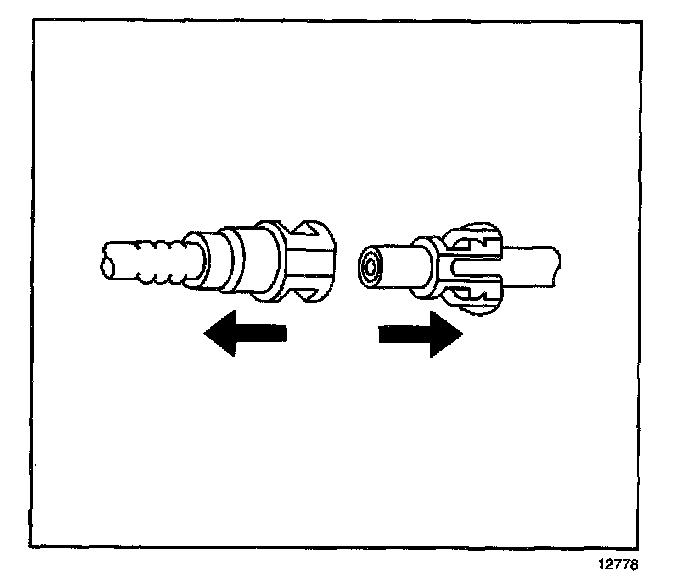

4. Pull the connection apart.

INSTALLATION PROCEDURE

CAUTION: Refer to Fuel Pipe Fining Caution in Service Precautions.




1. Apply a few drops of clean engine oil to the male fuel pipe end.

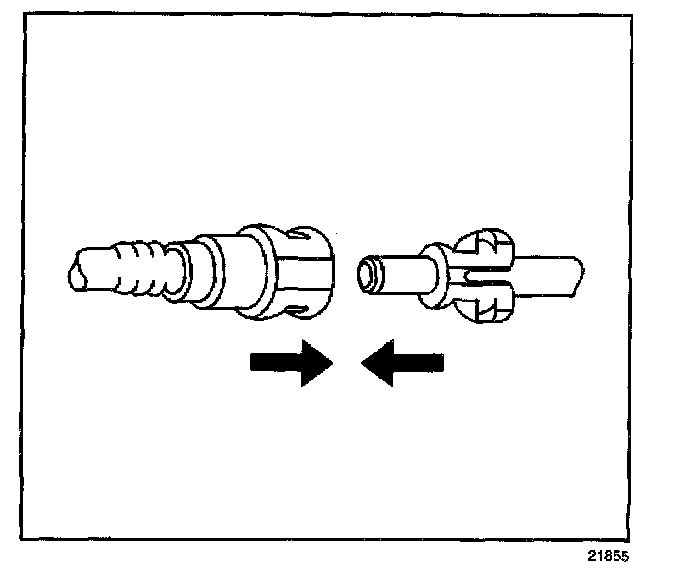

2. Push both sides of the quick-connect fitting together in order to cause the retaining tabs/fingers to snap into place.
3. Once installed, pull on both sides of the quick-connect fitting in order to make sure the connection is secure.
