Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT

REMOVAL PROCEDURE




1. Lift the vehicle. Refer to Lifting and Jacking the Vehicle
2. Remove right front tire and wheel assembly.

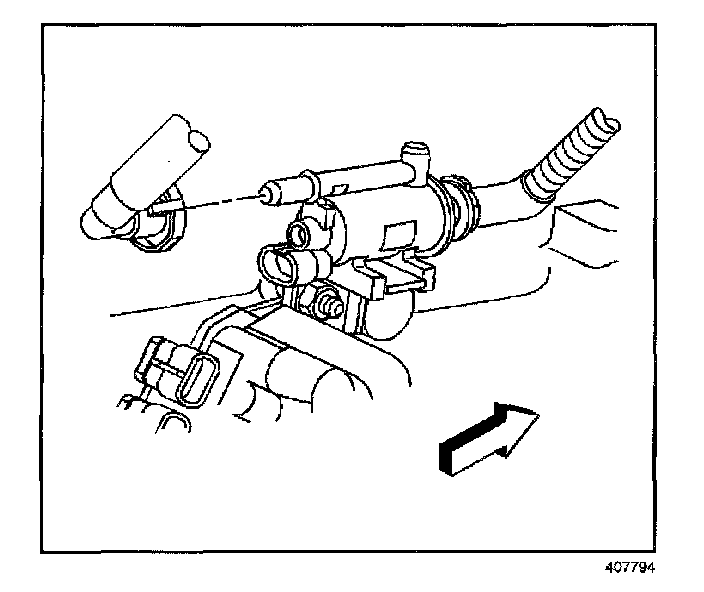

3. Disconnect the EVAP canister purge valve harness connector.




4. Disconnect the purge pipe from the EVAP canister purge valve.

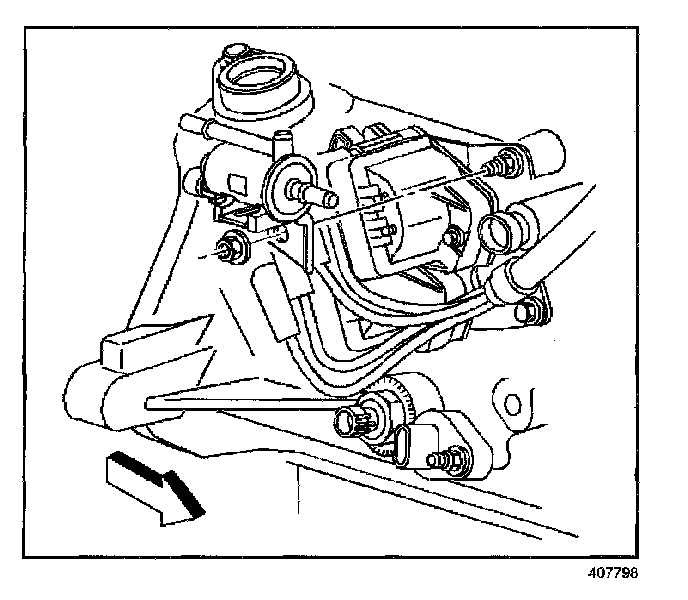

5. Remove the purge valve nut and the purge valve mounting bracket.
6. Remove the purge valve from the purge valve mounting bracket.

INSTALLATION PROCEDURE




1. Install purge valve on to the purge valve mounting bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

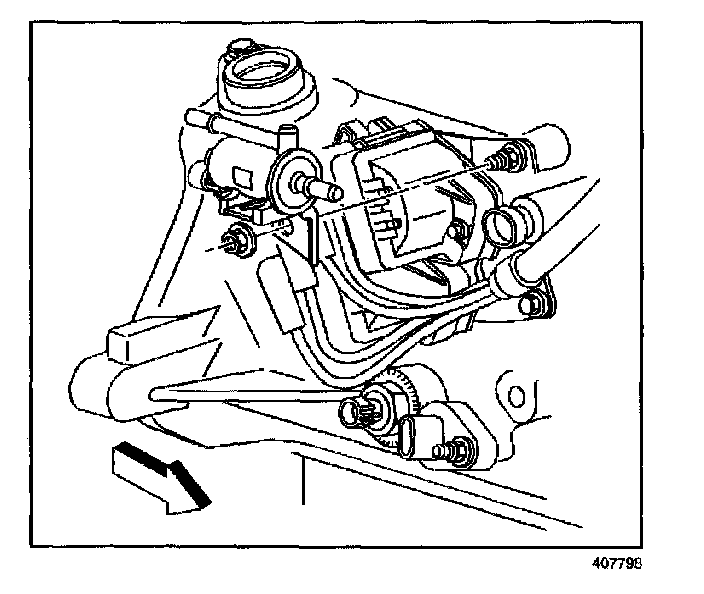

2. Install the purge valve mounting bracket and the attaching nut.

Tighten
Tighten the purge valve mounting bracket attaching nut to 8 N.m (71 lb in).




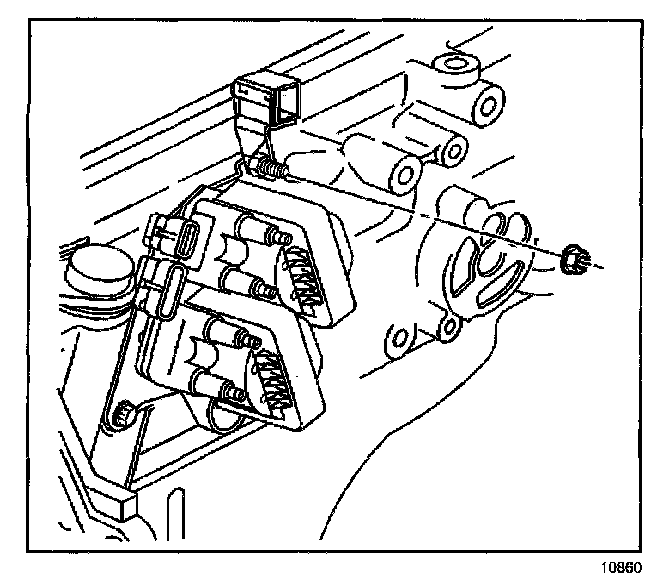

3. Slide the purge valve bracket on to the mounting stud.

Tighten
Tighten the purge valve mounting nut to 8 N.m (71 lb in).




4. Connect the purge pipe to the EVAP canister purge valve.




5. Connect the EVAP canister purge valve harness connector.
6. Reinstall right front wheel and tire assembly.
7. Lower vehicle.
