EVAP System Overview
EVAP System Overview

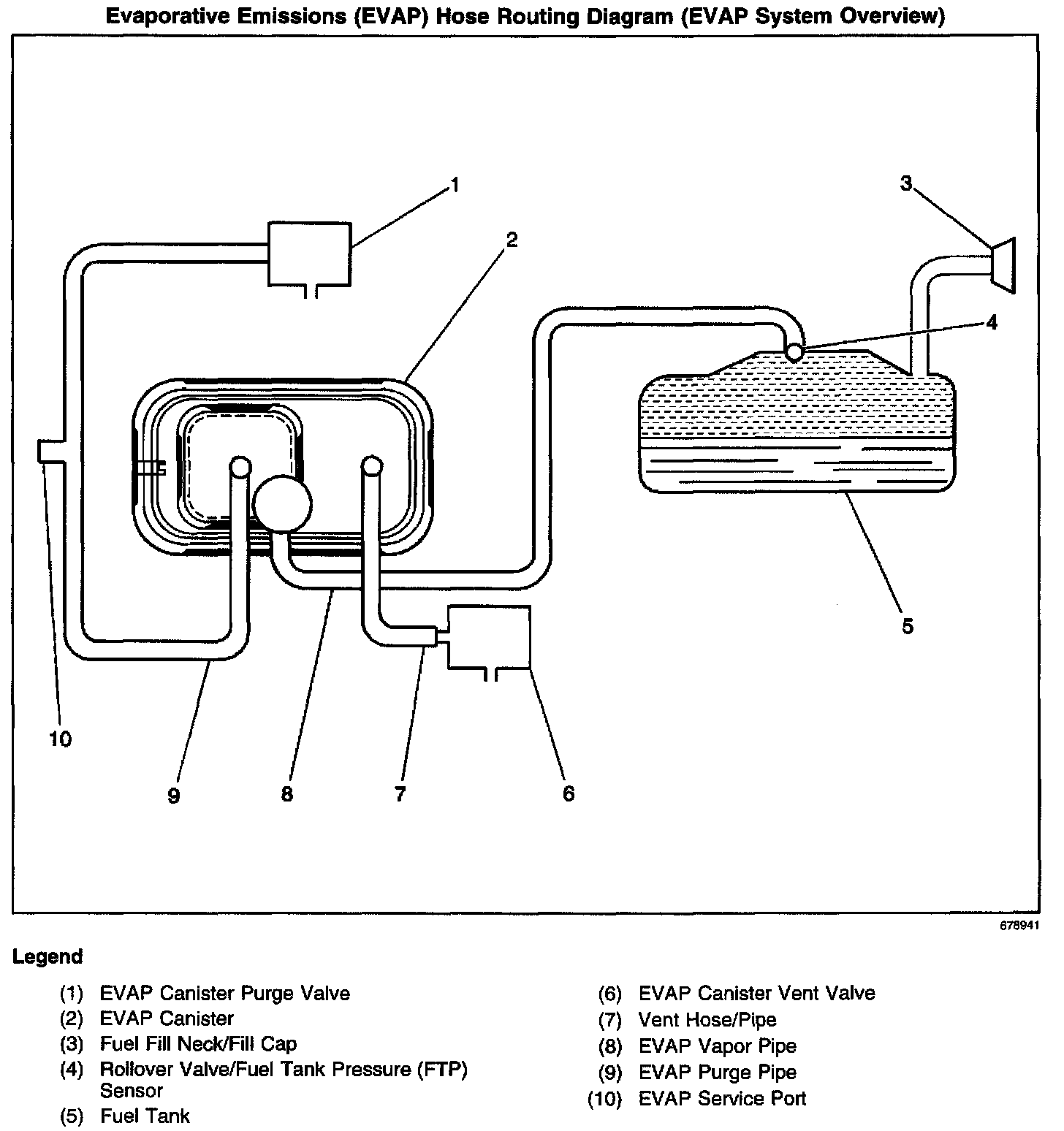

Evaporative Emissions (EVAP) Hose Routing Diagram (EVAP System Overview):
