EVAP Pressure/Purge Diagnostic Station

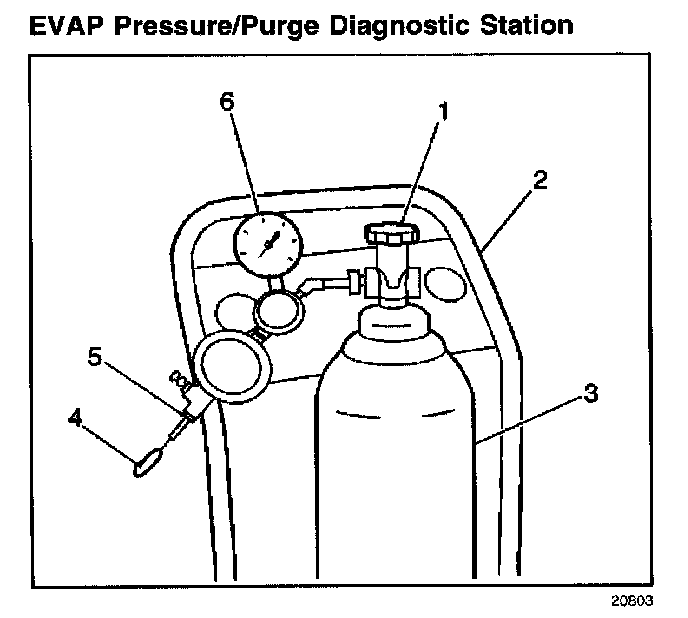

EVAP Pressure/Purge Diagnostic Station:

The EVAP Pressure/Purge Diagnostic Station J 41413 is used to help locate leaks in the EVAP system. The diagnostic station provides a clean, dry, regulated supply of nitrogen to pressurize the EVAP system. Refer to the directions on the cart (2) for proper operation.

The Ultrasonic Leak Defector J 41416 is then used to pinpoint the source of the leak.
