Inlet

Radiator Hose Replacement - Inlet (2.2 L)

Removal Procedure





1. Partially drain the cooling system.
2. Remove the air cleaner outlet resonator.
3. Remove the radiator inlet hose from the support.

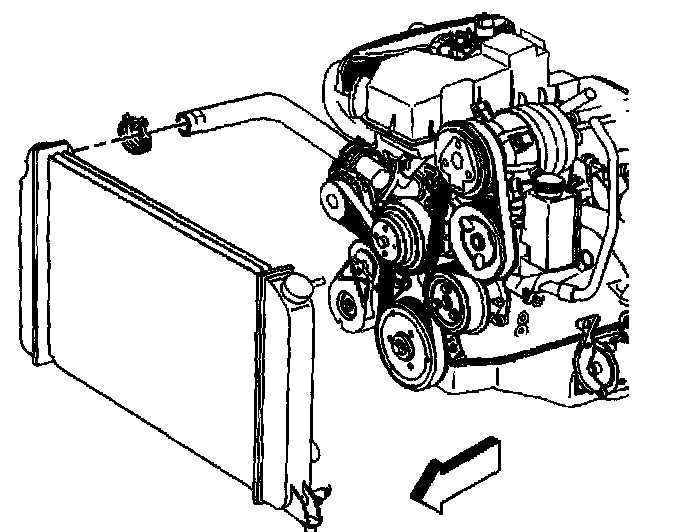

4. Remove the radiator inlet hose clamp from radiator.
5. Remove the radiator inlet hose from the radiator.

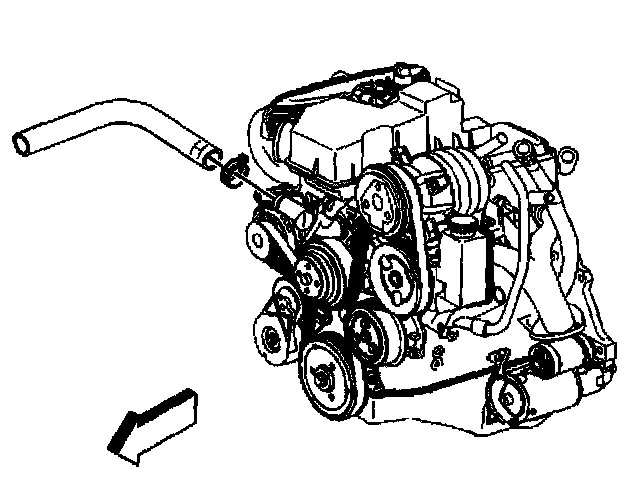

6. Remove the radiator inlet hose clamp from the coolant outlet.





7. Remove the radiator inlet hose from the coolant outlet.
8. Remove the radiator inlet hose.

Installation Procedure





1. Install the radiator inlet hose clamp to the coolant outlet.





2. Install the radiator inlet hose clamp to the radiator.
3. Install the radiator inlet hose to the support.
4. Fill the cooling system.
5. Install the air cleaner outlet resonator.
6. Inspect the cooling system for leaks.
