Home >> Chevy Truck >> 2001 >> S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel >> Repair and Diagnosis >> Lighting and Horns >> Brake Light Switch >> Diagrams

Brake Light Switch: Diagrams

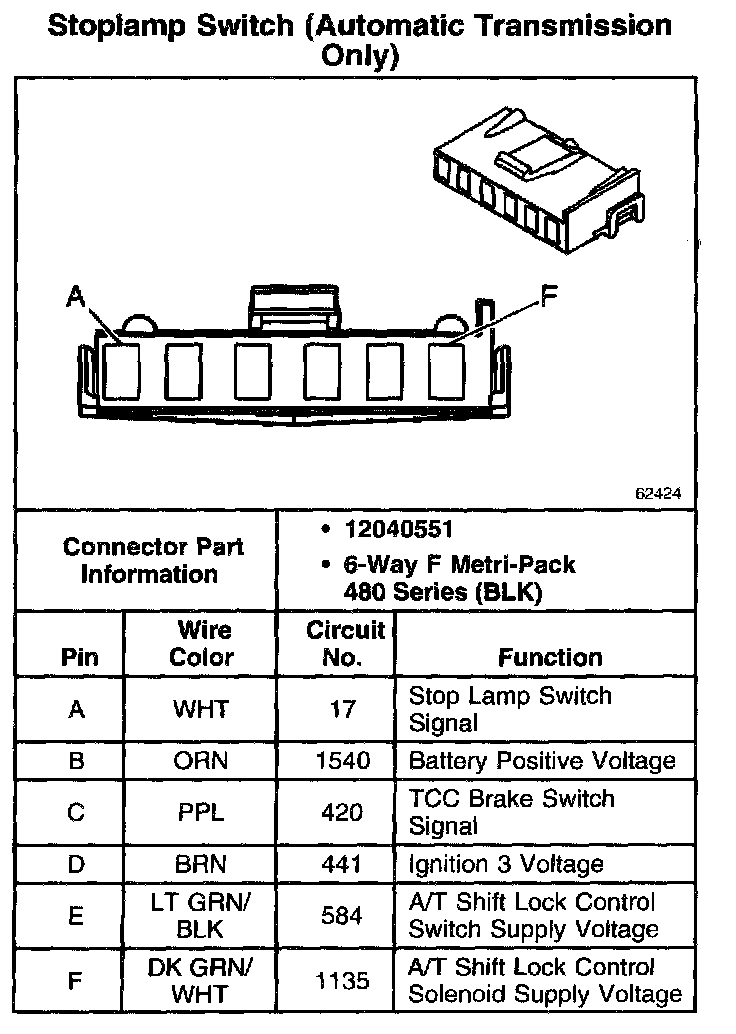

Stoplamp Switch (Automatic Transmission Only):
