Blower Motor Resistor Assembly Replacement (C60)

REMOVAL PROCEDURE

NOTE: Do not allow the metal coils of the blower resistor to become grounded to any metal surface. This may result in internal circuitry damage.

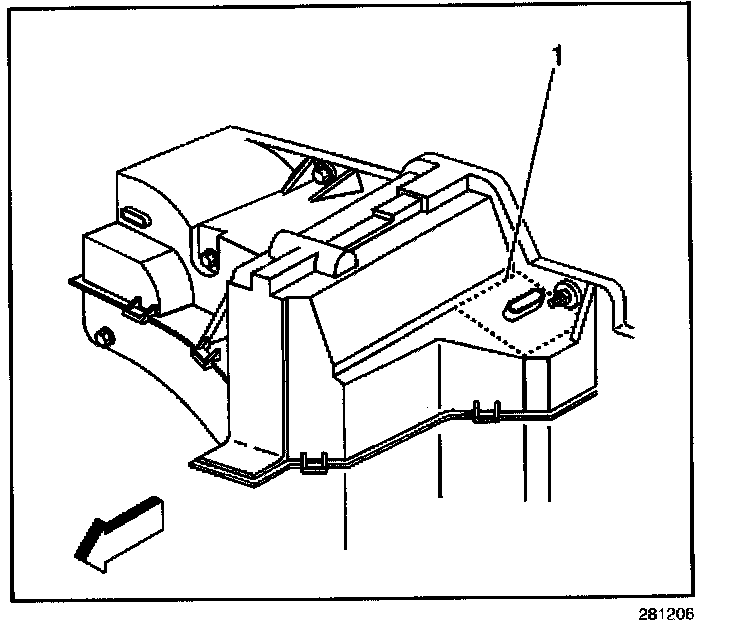

1. Remove the A/C control relay bracket with the relay.
2. Remove the blower resistor harness.
3. Remove the stud from the IP, if necessary.
4. Remove the blower motor resistor mounting screw.
5. Remove the blower motor resistor assembly.

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the blower motor resistor mounting screw.

Tighten
Tighten the screw to 1.9 N.m (17 lb in).

3. Install the stud to the dash panel, if necessary.
4. Install the resistor harness.
5. Install the A/C relay bracket into the body.
