Home
>>
Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Drive Axle - Locking/Limited Slip Rear Axle
Rear Drive Axle - Locking/Limited Slip Rear Axle

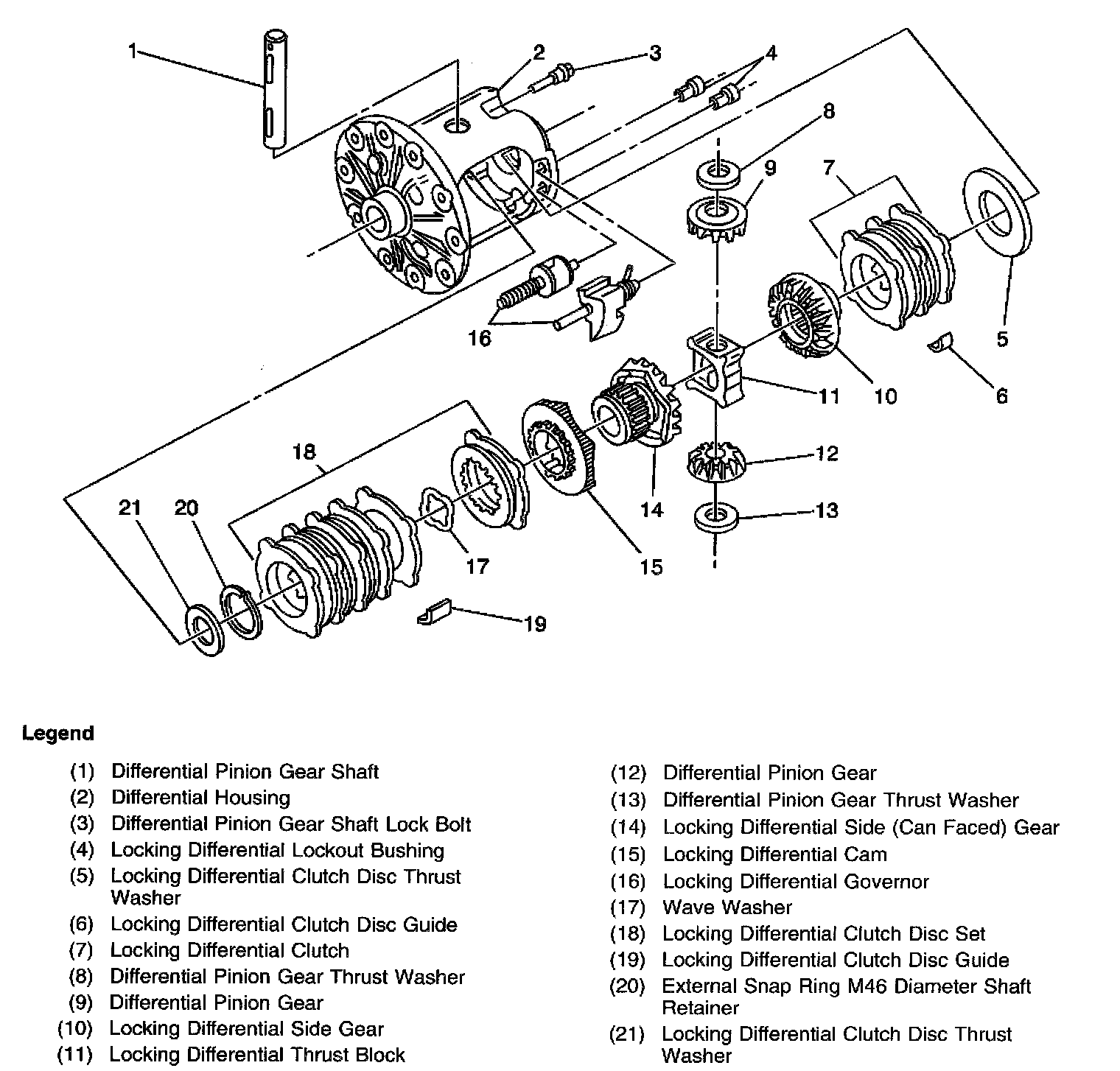

Locking Differential Disassembled Views
Locking Differential
