Home >> Chevy Truck >> 2001 >> S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Schematics >> Ground

Ground

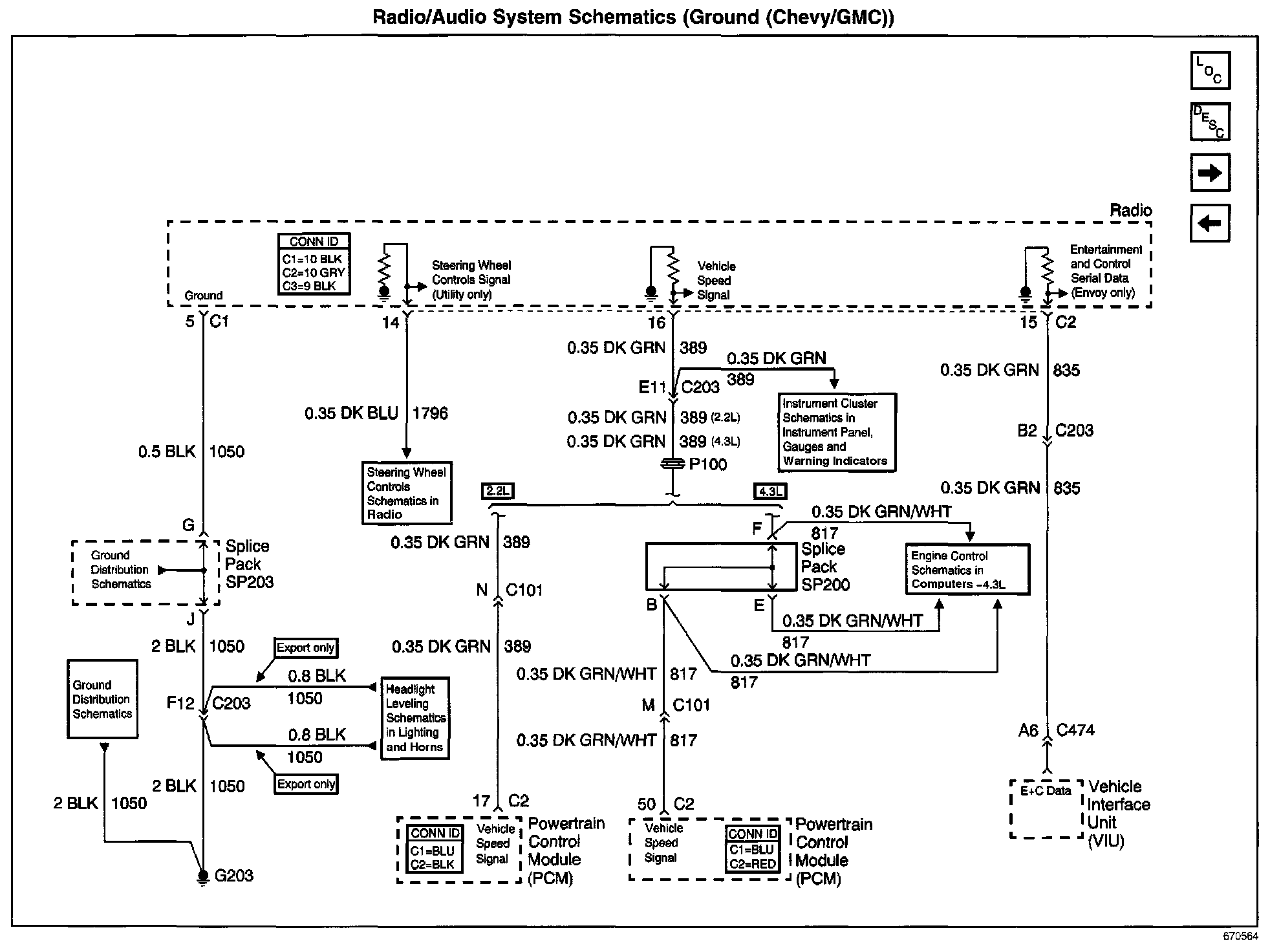

Radio/Audio System Schematics: Ground (Chevy/GMC):
