Fuel Level and Fuel Tank Pressure Sensors

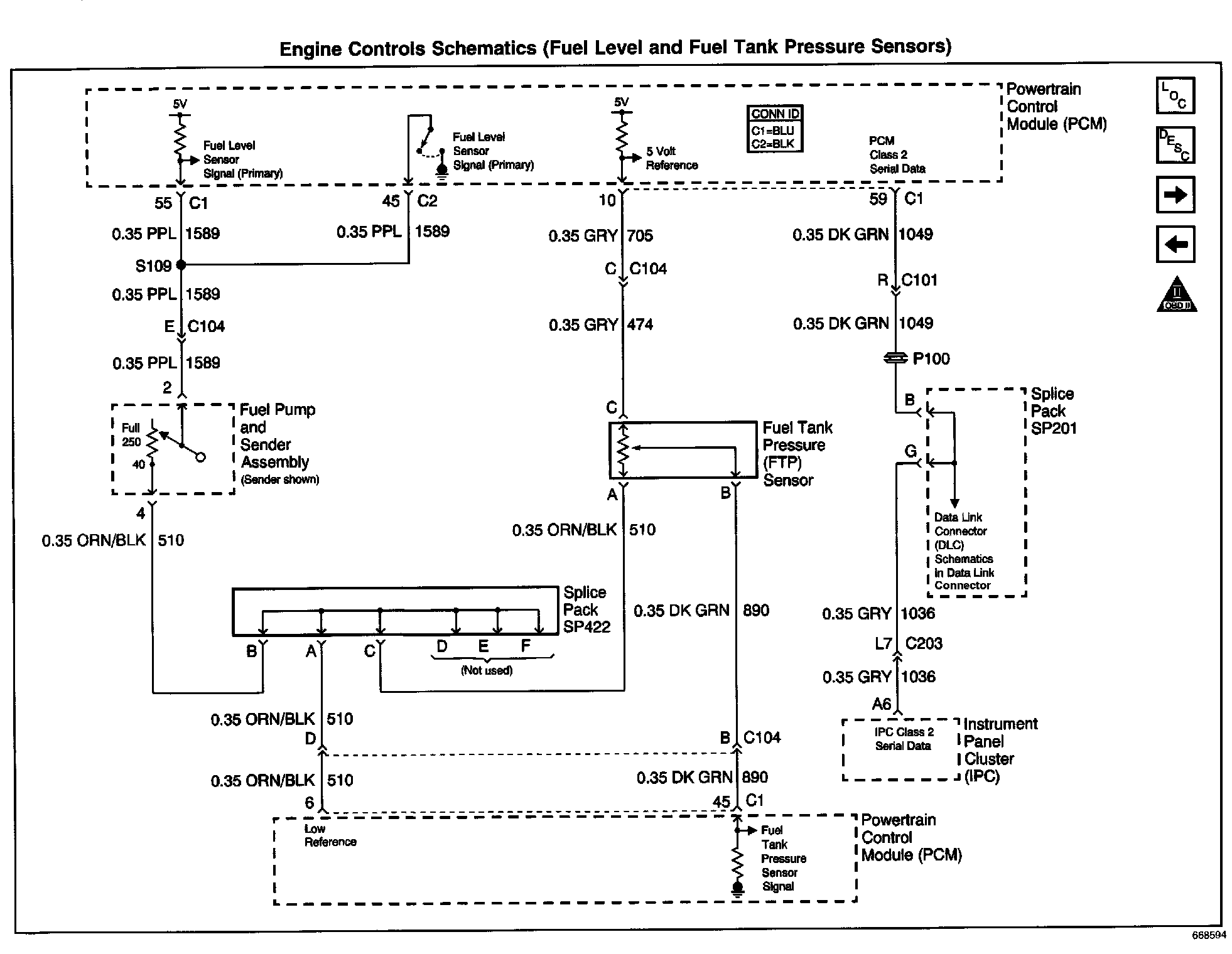

Engine Controls Schematics: Fuel Level and Fuel Tank Pressure Sensors:
