Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vacuum Solenoid Valve HVAC
Vacuum Solenoid Valve HVAC

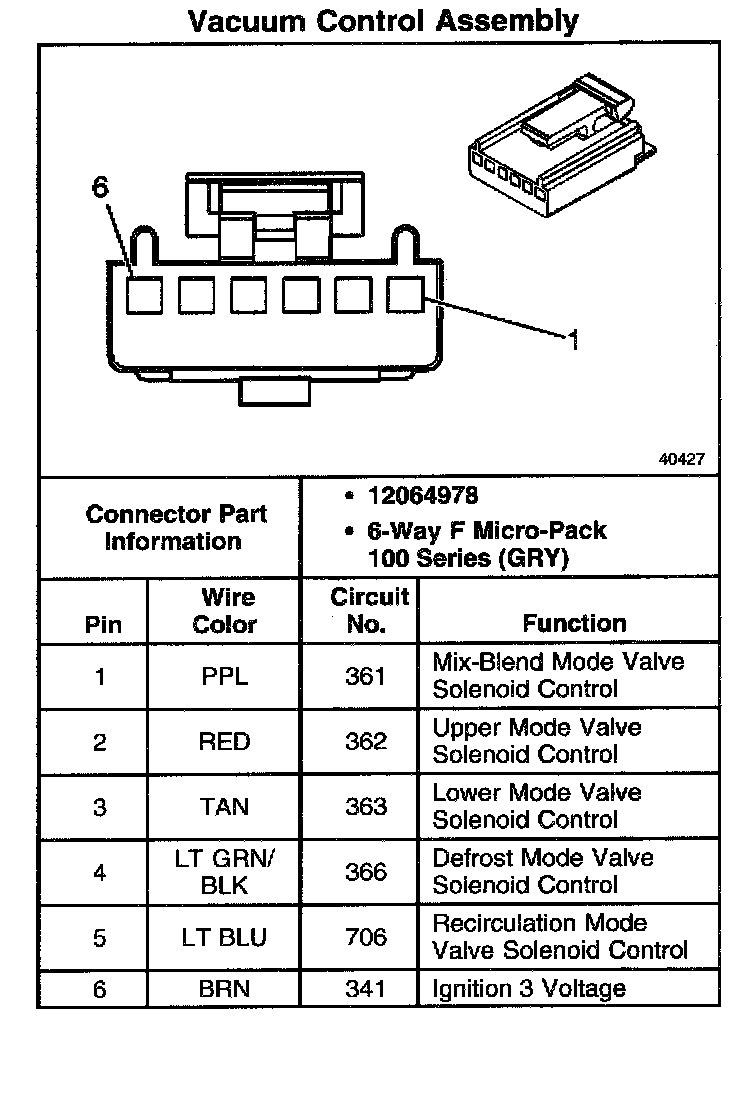

Vacuum Control Assembly:
