Home
>>
Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Motor
Sunroof / Moonroof Motor

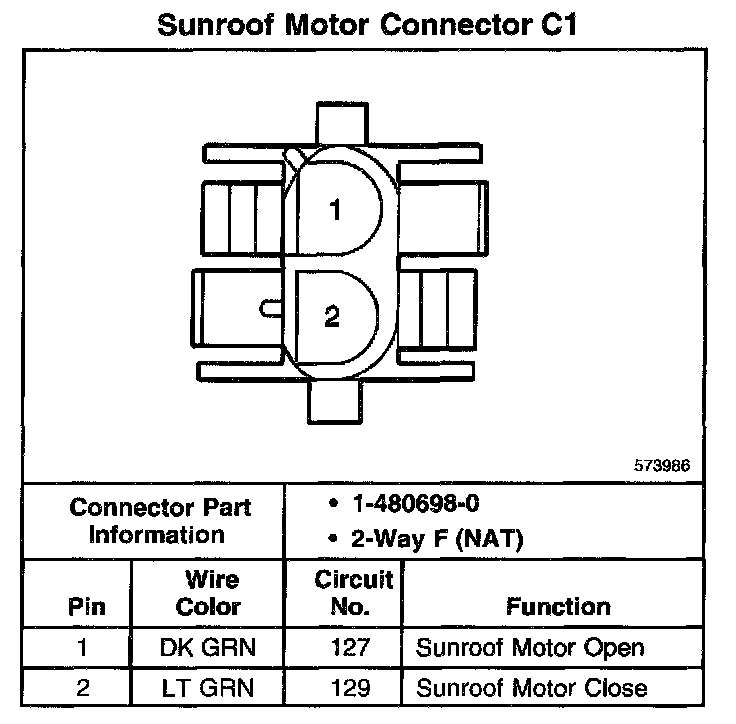

Sunroof Motor Connector C1:

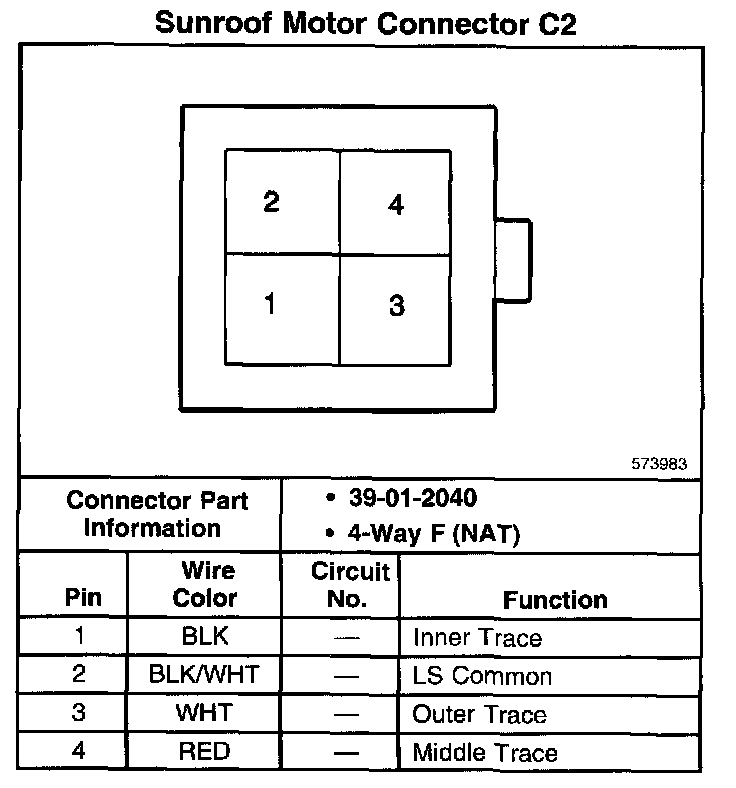

Sunroof Motor Connector C2:
