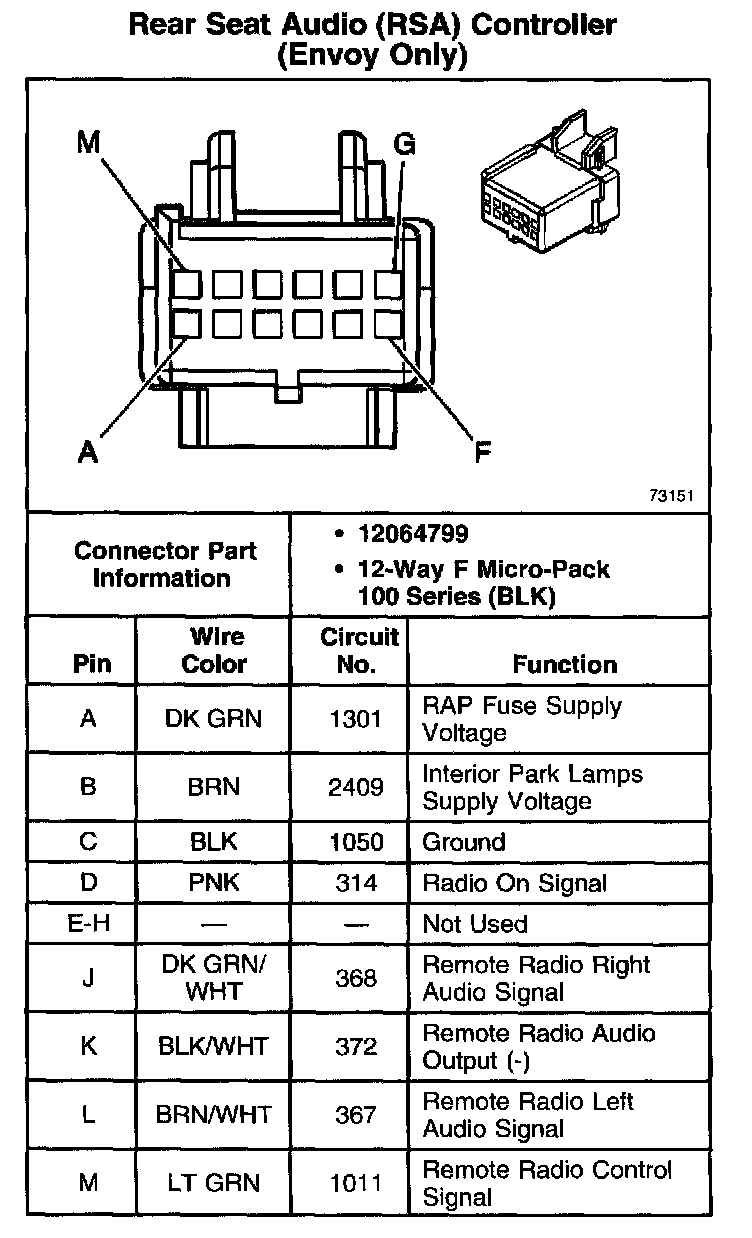

Rear Seat Audio (RSA) Controller (Envoy Only)
Rear Seat Audio (RSA) Controller (Envoy Only)
Rear Seat Audio (RSA) Controller (Envoy Only):
