Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>

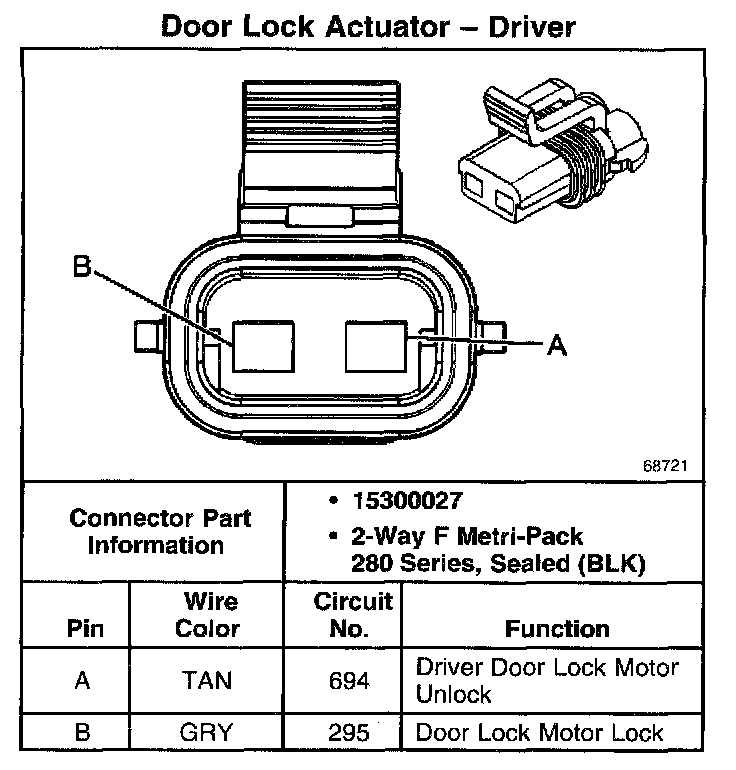

Door Lock Actuator - Driver
Door Lock Actuator - Driver
Door Lock Actuator - Driver:
