Home >> Chevy Truck >> 2001 >> S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Outside Rearview Mirror, LH

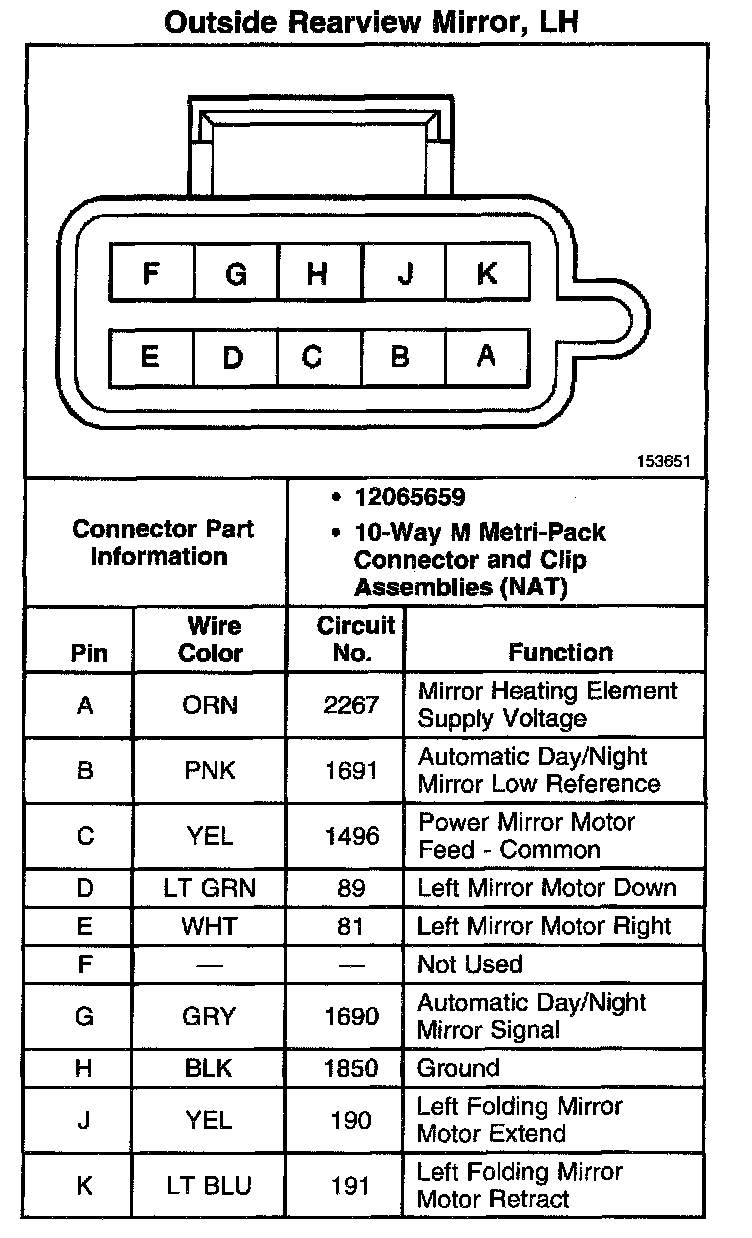

Outside Rearview Mirror, LH

Outside Rearview Mirror, LH:
