Home >> Chevy Truck >> 2001 >> S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram >> Inside Rear View Mirror (W/ Reading Lamps)

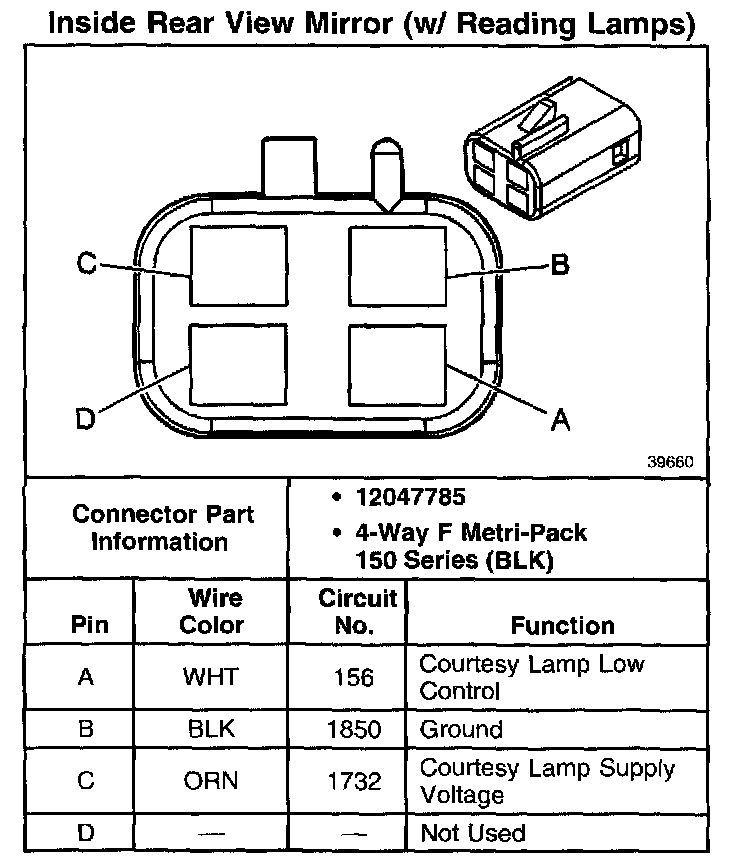

Inside Rear View Mirror (W/ Reading Lamps)

Inside Rear View Mirror (W/ Reading Lamps):
