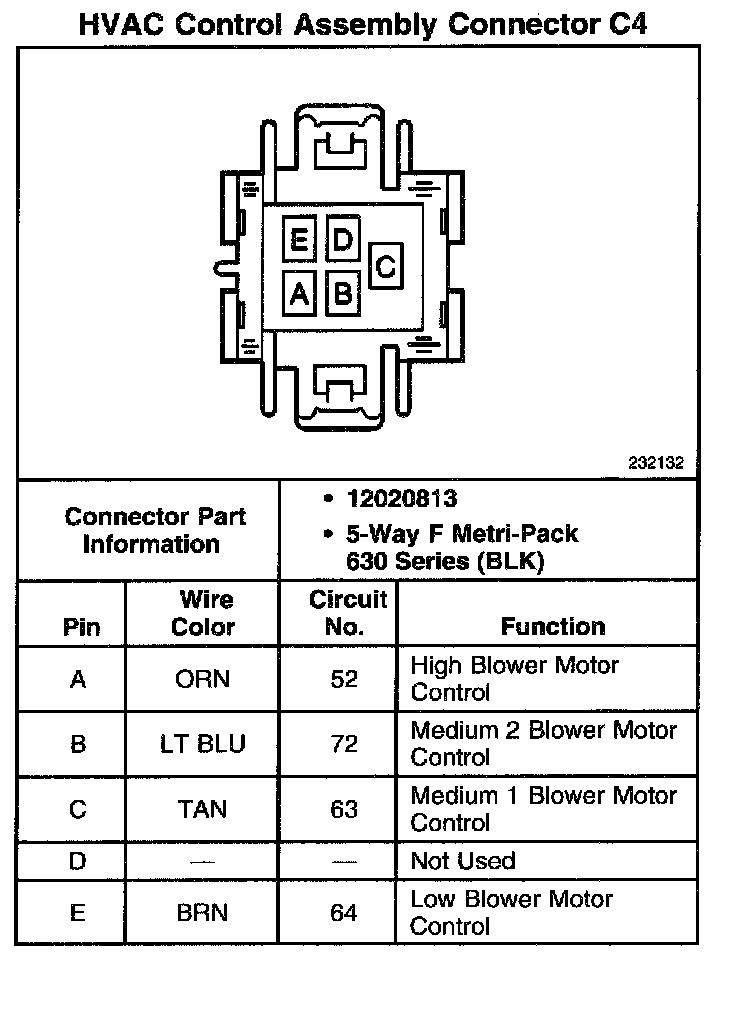

HVAC Control Assembly Connector C4
HVAC Control Assembly Connector C4
HVAC Control Assembly Connector C4:
