Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Center Mounted Brake Lamp
>>
Center High Mount Stop Lamp
Center High Mount Stop Lamp

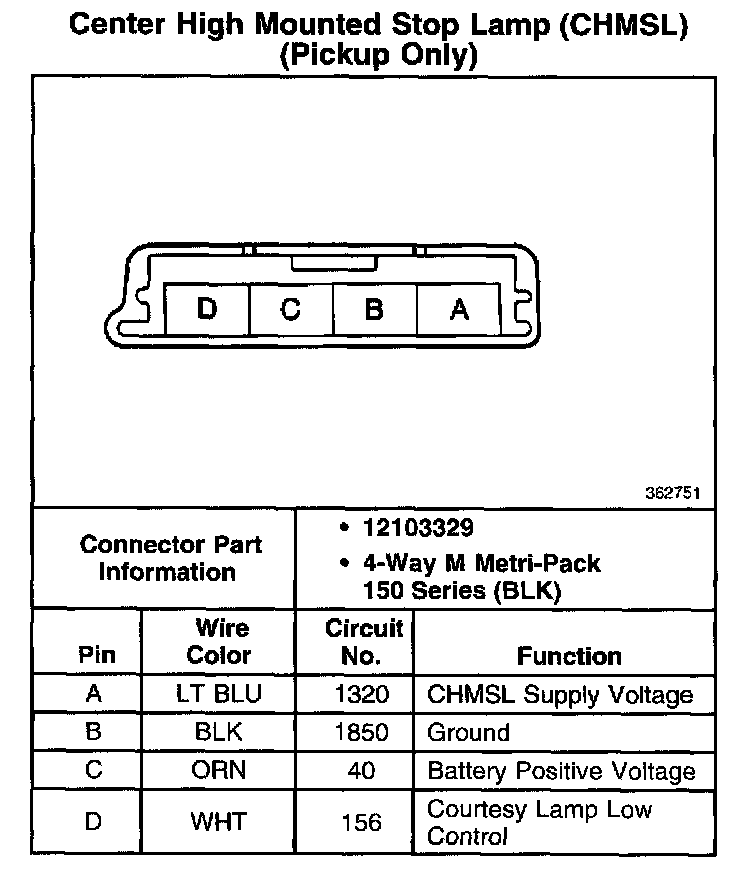

Center High Mounted Stop Lamp (CHMSL) (Pickup Only):
