S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
HVAC Systems - Automatic
>>

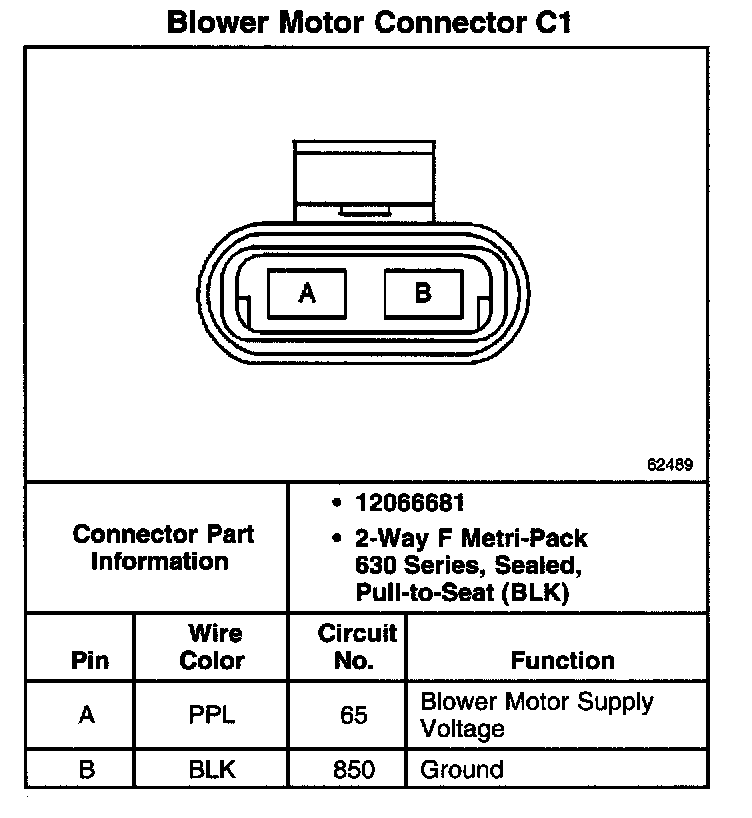

Blower Motor Connector C1
Blower Motor Connector C1
Blower Motor Connector C1:
