Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Audio Amplifier - C1
Audio Amplifier - C1

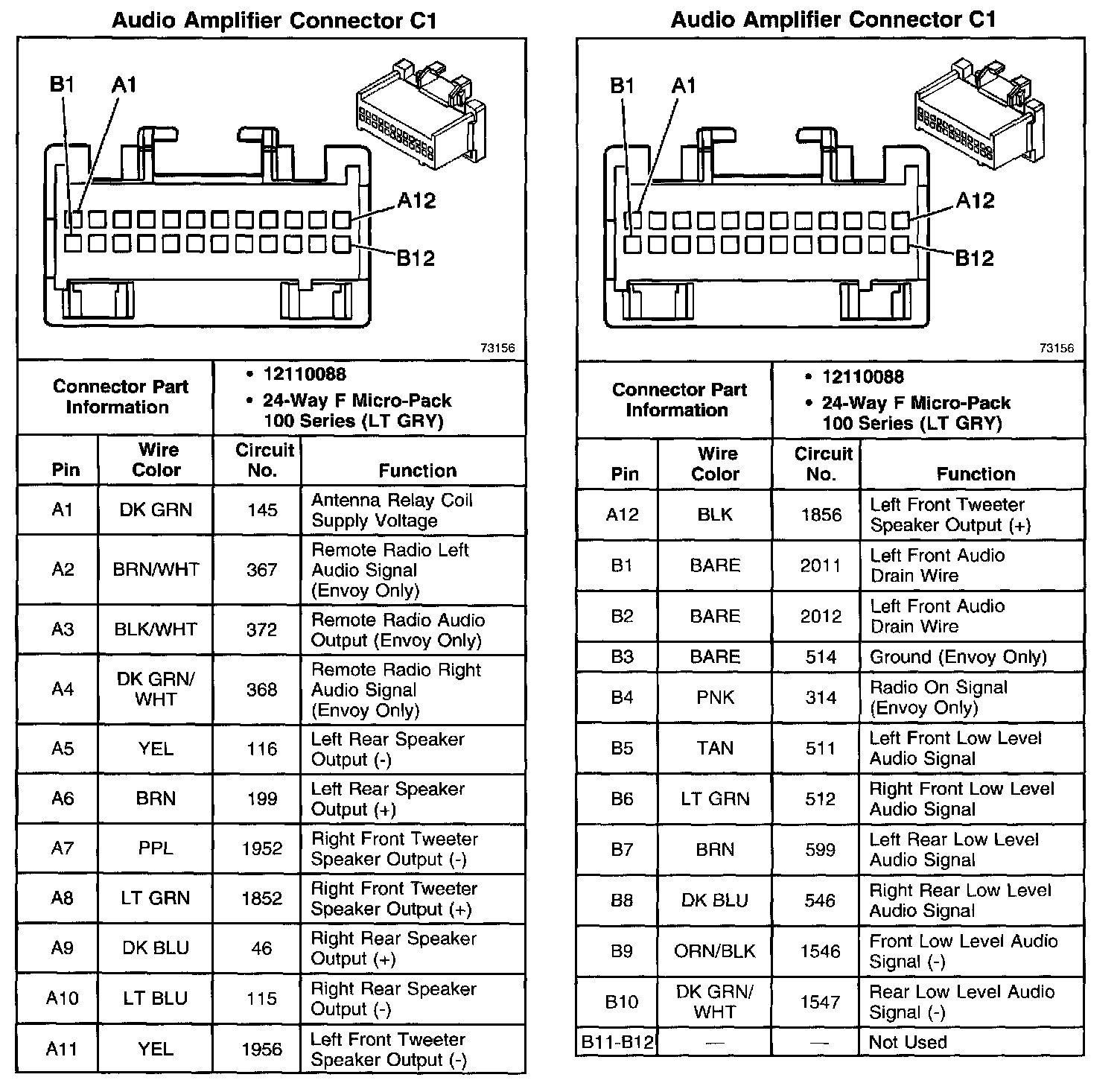

Audio Amplifier Connector C1:
