Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
S10/T10 P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Temperature Sensor / Switch HVAC
>>
HVAC Systems - Automatic
>>

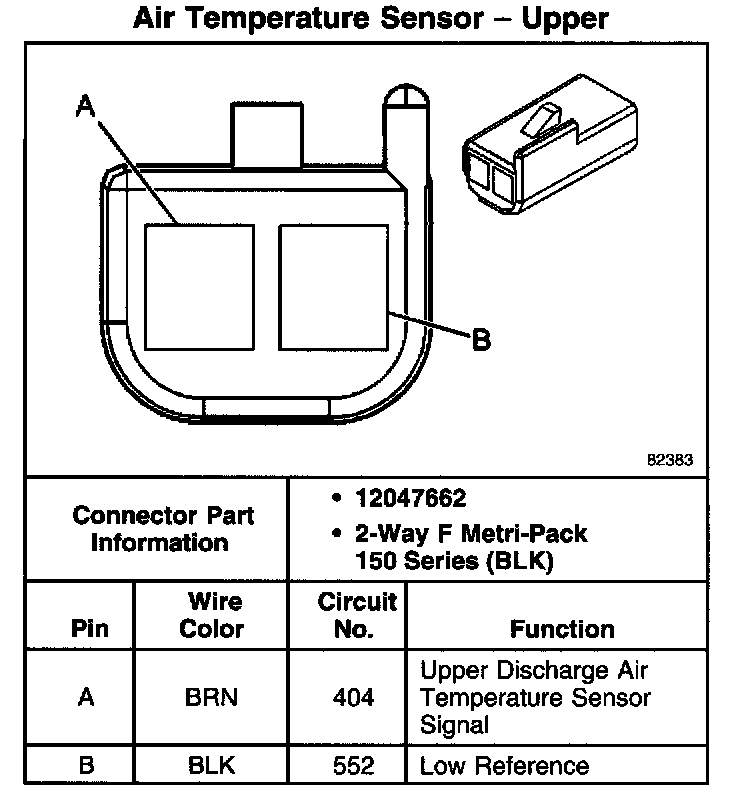

Air Temperature Sensor - Upper
Air Temperature Sensor - Upper
Air Temperature Sensor - Upper:
