Park Brake Cable Replacement- Front

Removal Procedure





1. Raise the vehicle and support the vehicle with safety stands. Refer to Vehicle Lifting.

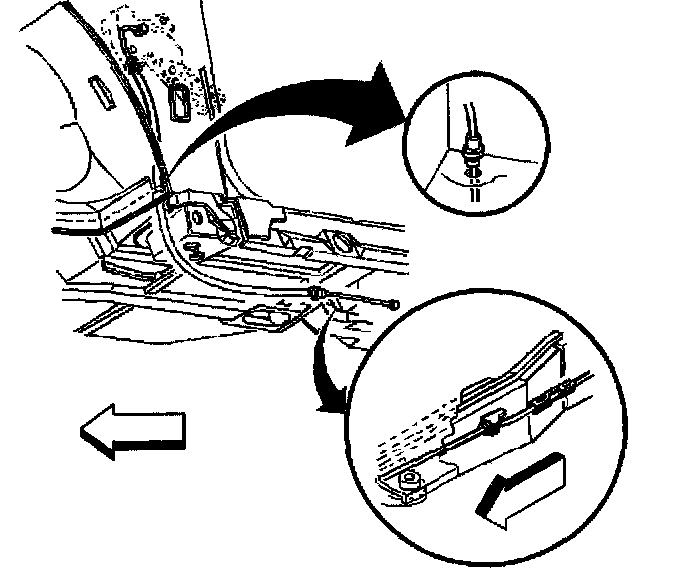

2. Disconnect the right rear cable at the equalizer.
3. Remove the park brake cable retainer.
4. Remove the left hinge pillar trim.





5. Remove the retainer and the grommet.

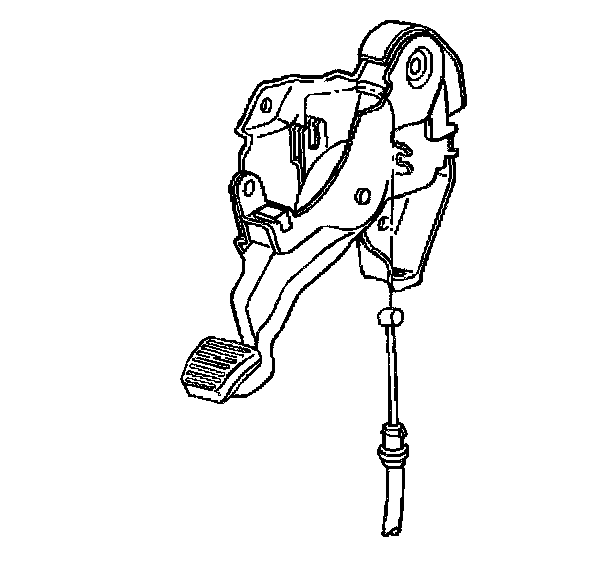

6. Disconnect the cable from the lever.





7. Disconnect the front cable.

Installation Procedure





1. Install the front cable.





2. Connect the retainer and the grommet. All retaining fingers must be completely through the hole.
3. Connect the cable to the lever.
4. Install the left hinge pillar trim.





5. Install retainer.

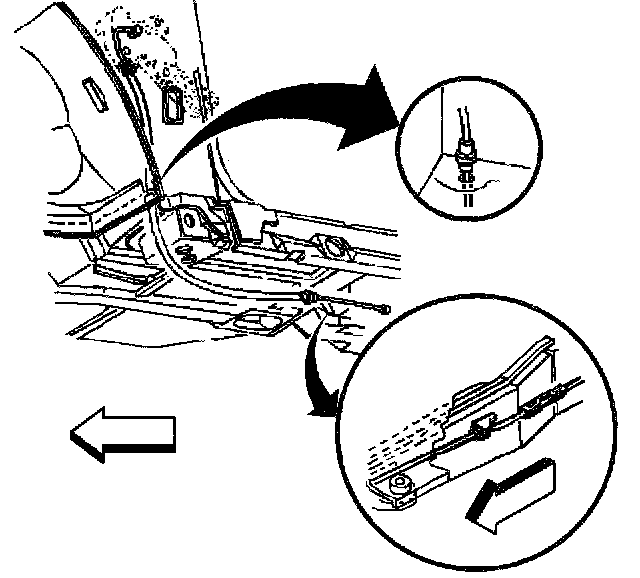

6. Connect the right rear cable to the equalizer and to the nut.
7. Adjust the park brake cable.
8. Lower the vehicle.
