Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>
Window Switch, LR/RR (4-Door)
Window Switch, LR/RR (4-Door)

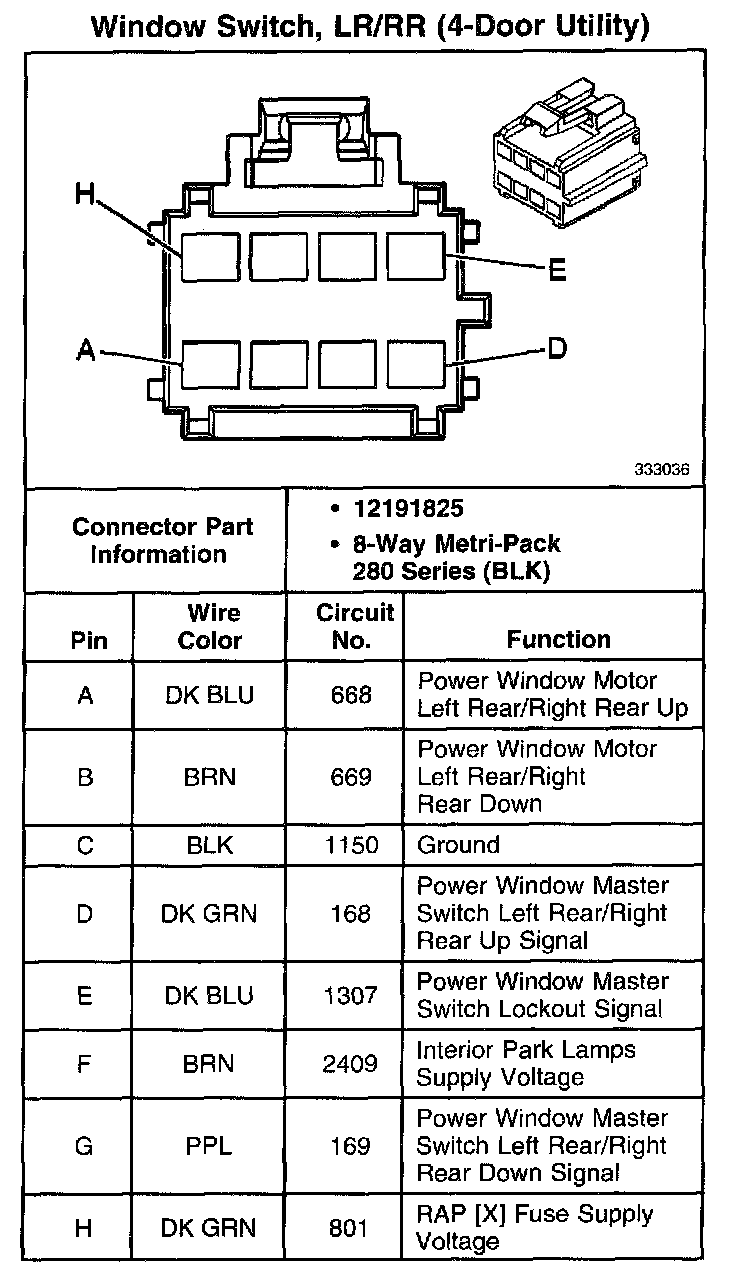

Window Switch, LR/RR (4-Door Utility):
