Home >> Chevy Truck >> 2001 >> K Tahoe 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Diagrams >> Connector Views >> Generator - Left (Dual Generators)

Generator - Left (Dual Generators)

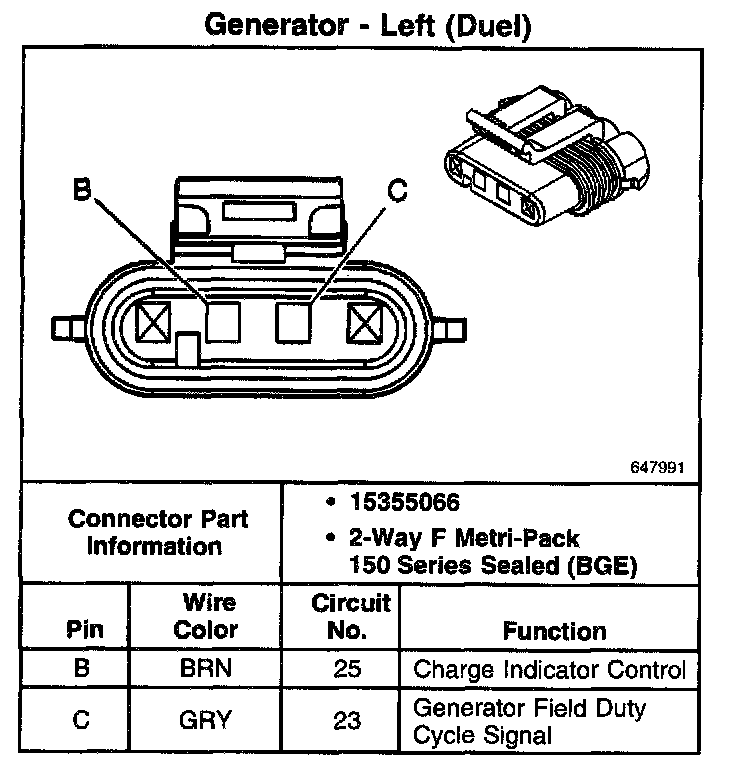

Generator - Left (Duel):
