Home >> Chevy Truck >> 2001 >> K Tahoe 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 4L80-E/4L85-E Automatic Transmission >> TFT Sensor, Pressure Control Solenoid, and ISS Sensor

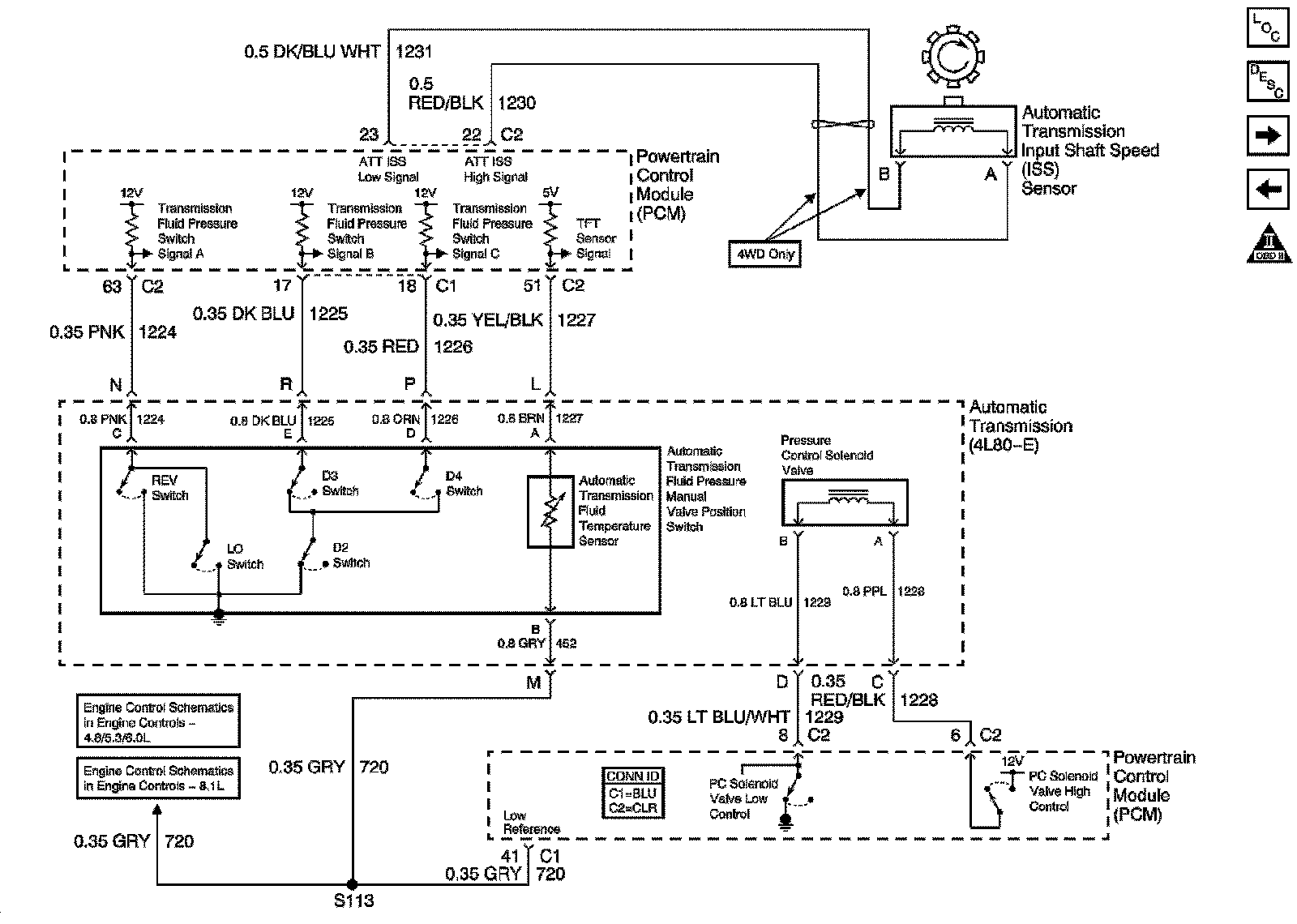

TFT Sensor, Pressure Control Solenoid, and ISS Sensor
