Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
Allison - Automatic Transmission
>>

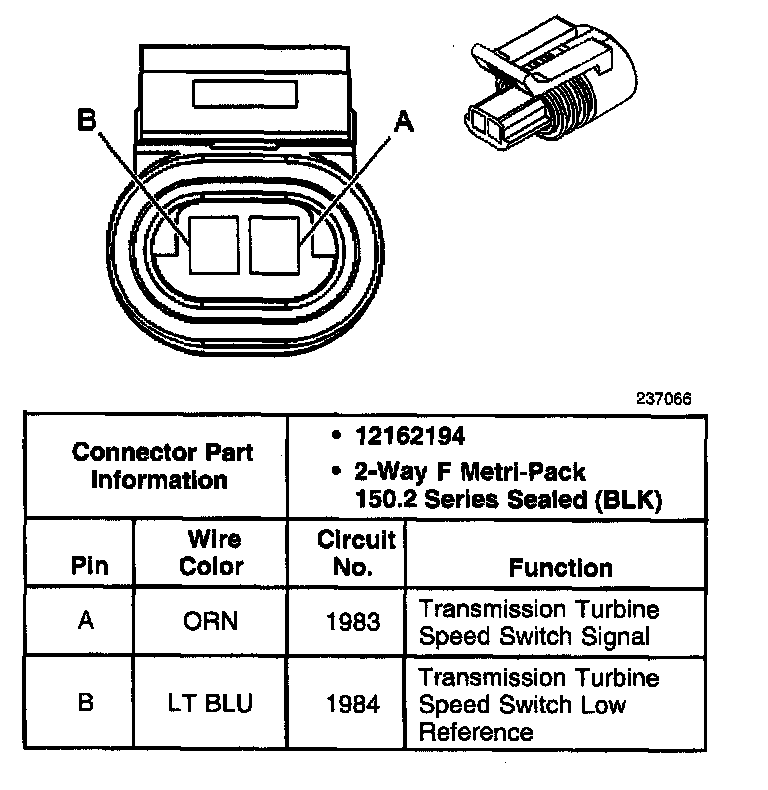

A/T Inline Harness -C2 (Transmission Side)
A/T Inline Harness -C2 (Transmission Side)
