A/C COMPRESSOR Relay
A/C COMPRESSOR Relay

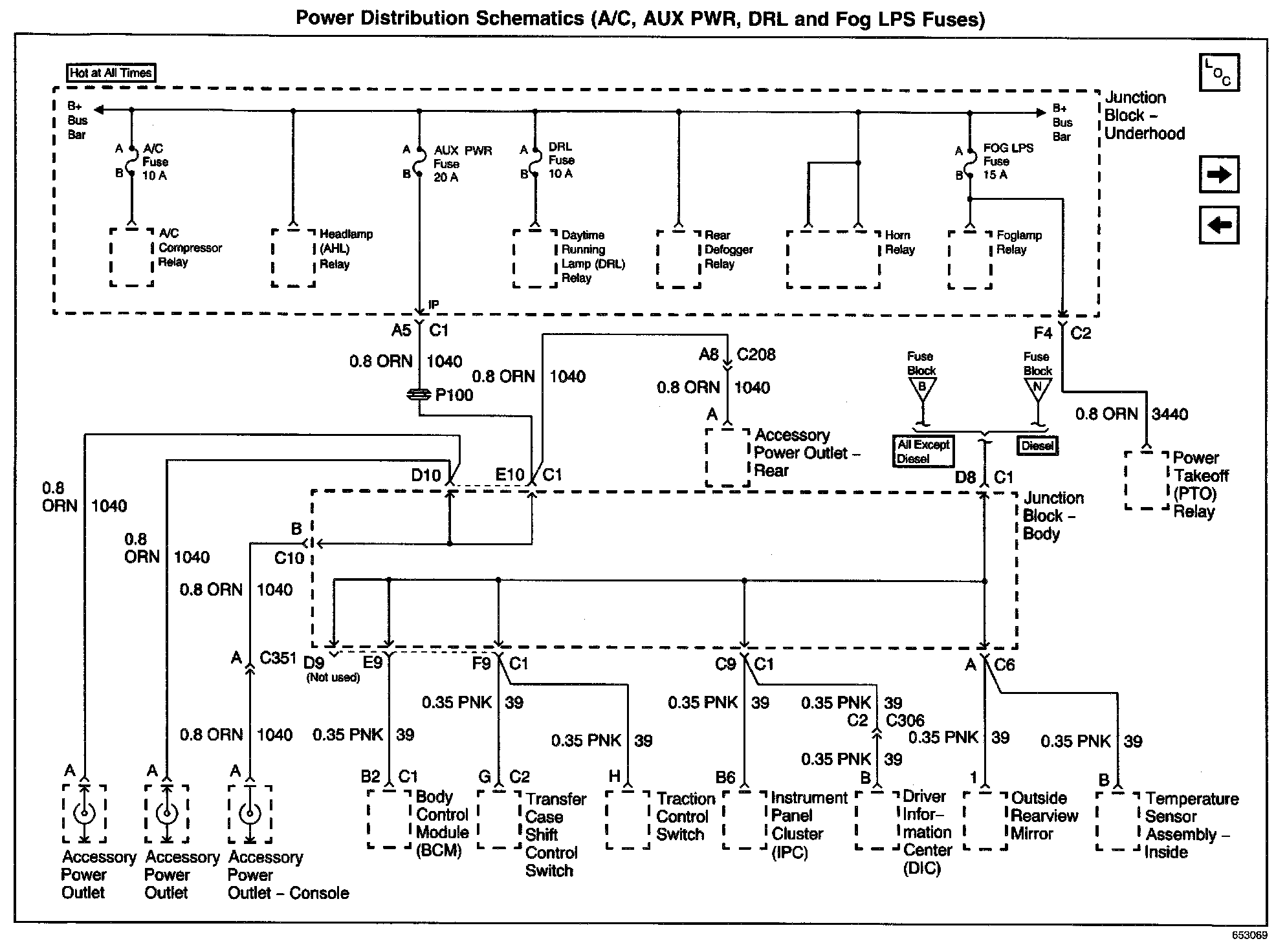

Power Distribution Schematics: A/C, AUX PWR, DRL And Fog LPS Fuses:
