Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Backup Lamp Switch
>>
Diagrams
>>
Connector Views
Connector Views

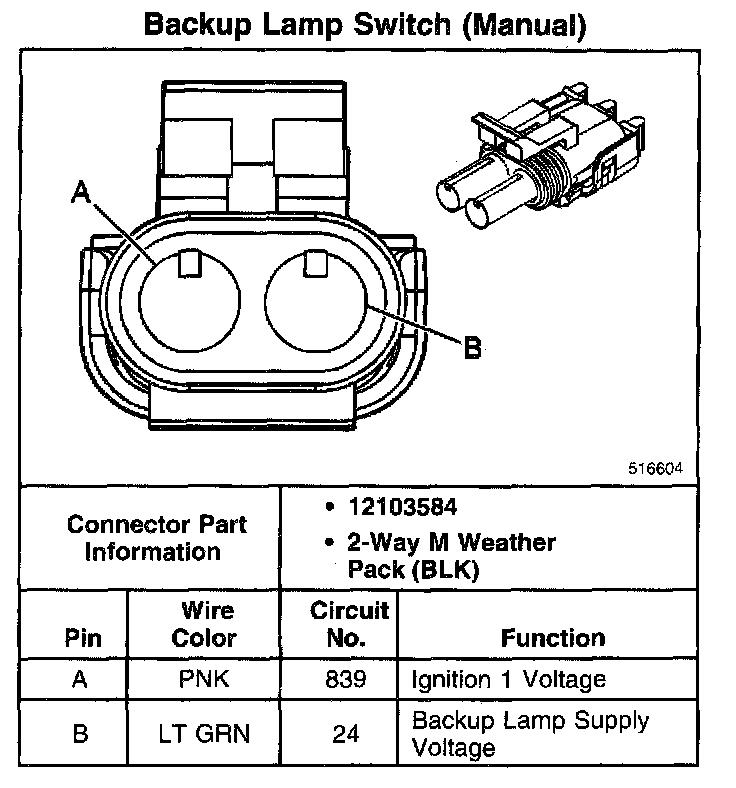

Back Up Lamp Switch (Manual):
