Suspension Control Module, Shock Absorber Solenoid

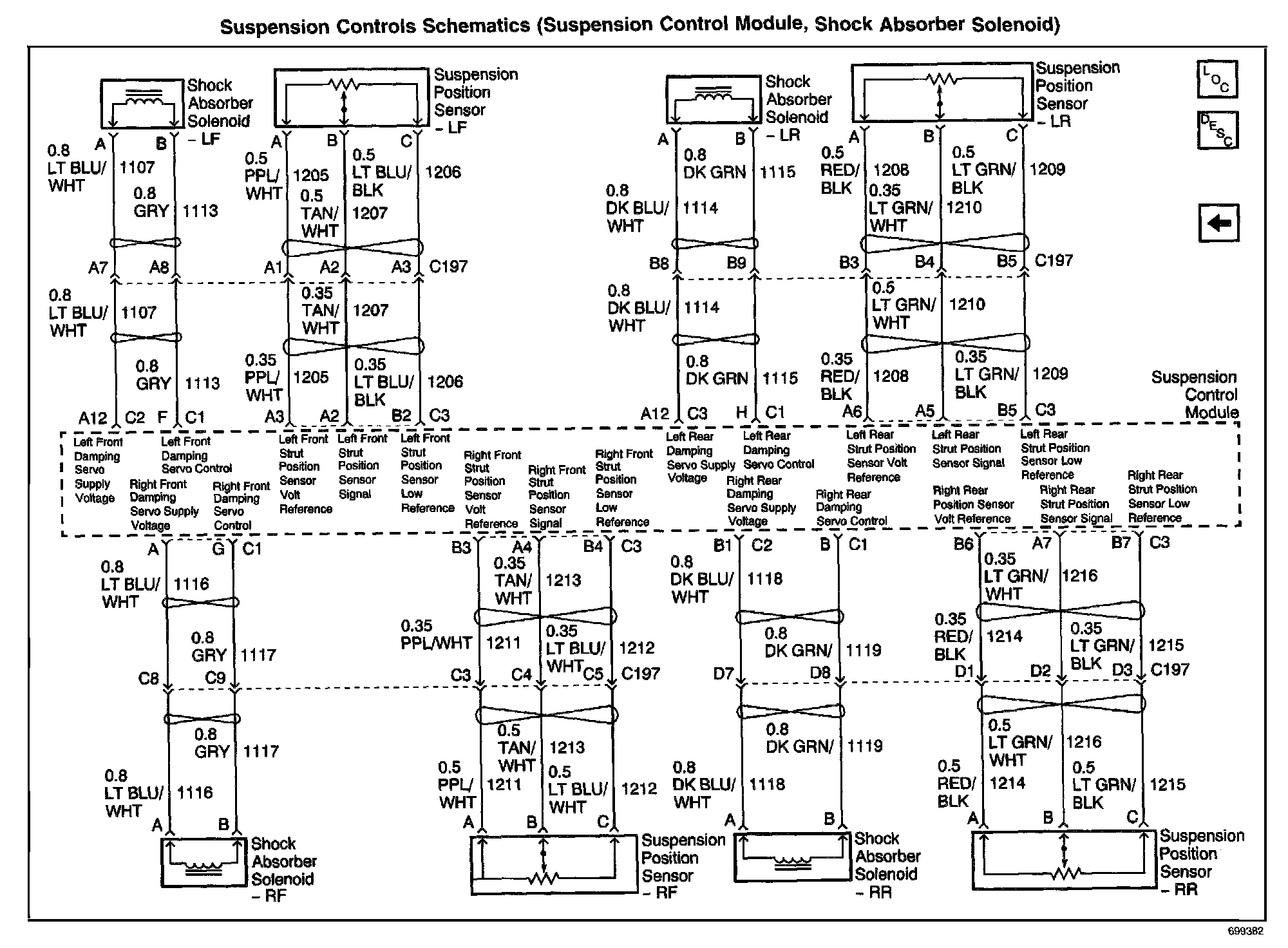

Suspension Control Schematics: Suspension Control Module, Shock Absorber Solenoid:
