Generator, G103, IGN 1 Fuse
Generator, G103, IGN 1 Fuse

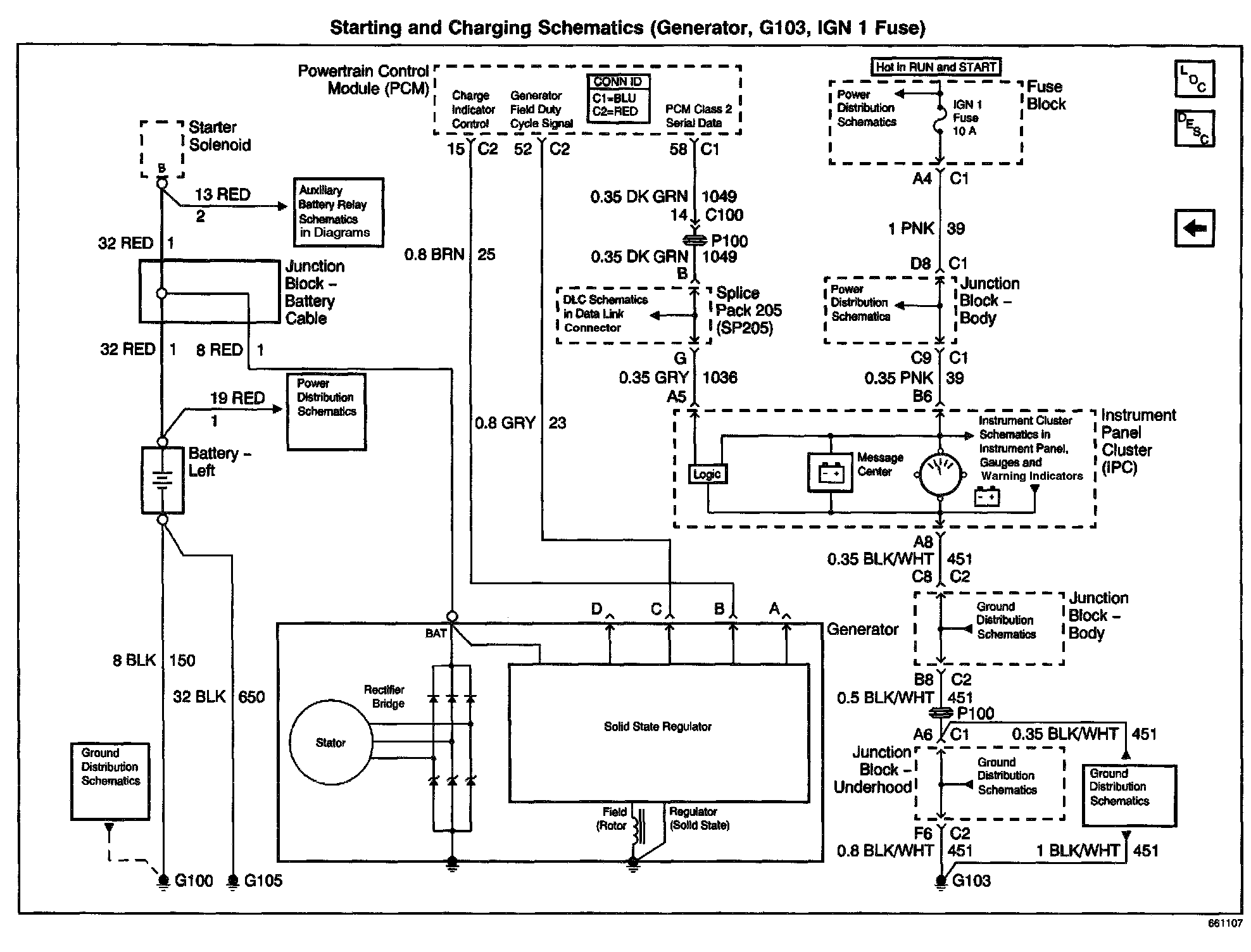

Starting And Charging Schematics: Generator, G103, IGN 1 Fuse:
