Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>
Selectable Ride
>>

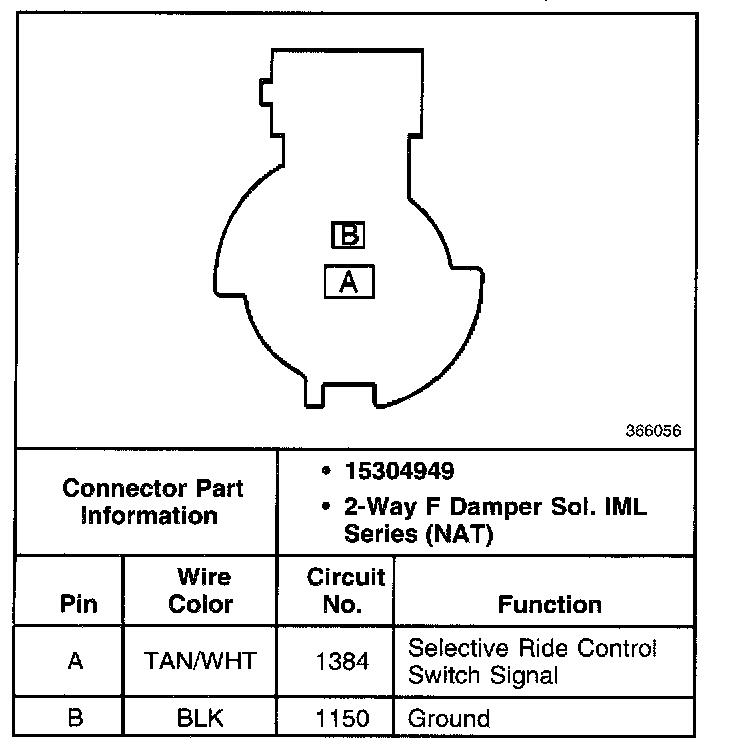

Shock Solenoid Valves - LF,RF
Shock Solenoid Valves - LF,RF
