Home
>>
Chevy Truck
>>
2001
>>
K Tahoe 4WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Fuse Block
>>

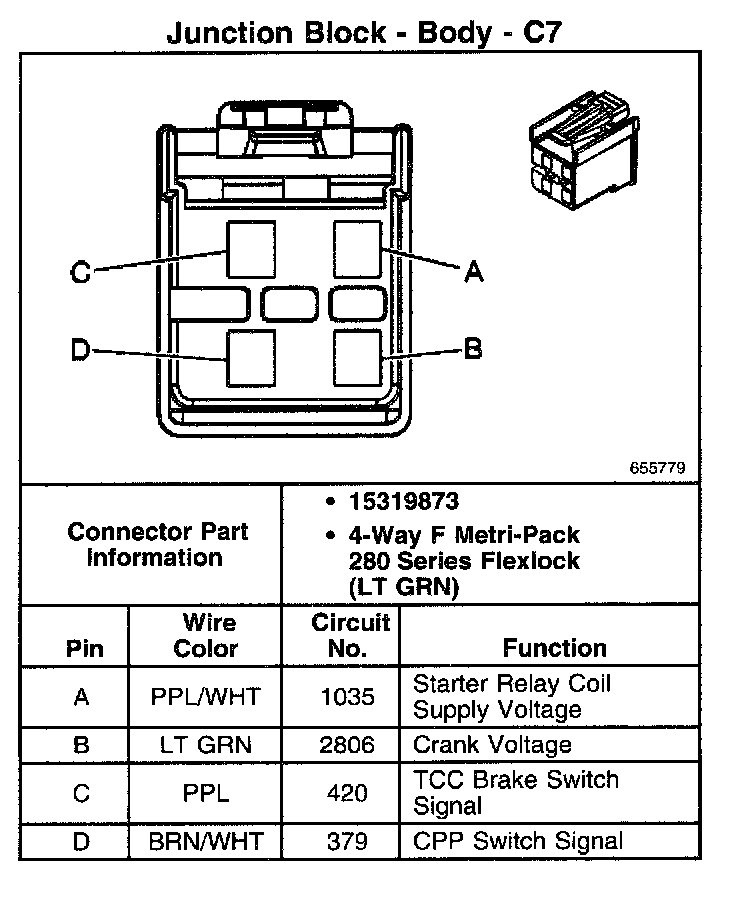

Junction Block - Body - C7
Junction Block - Body - C7
Junction Block - Body - C7:
